Product description

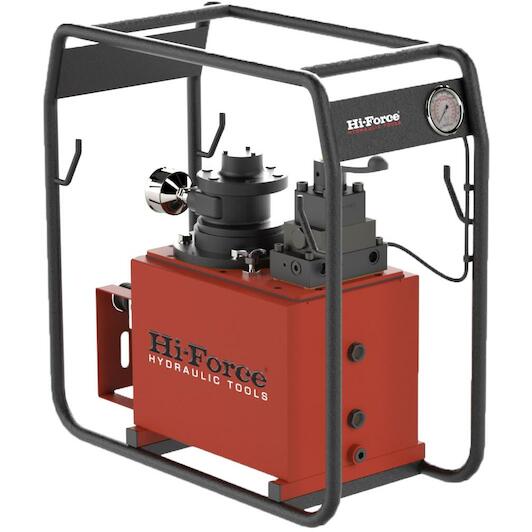

- Air-driven pump with high output
- Working pressure 700 bar
- Two-stage design
- 10 litre oil reservoir
- Driven by a 3 kW high-performance air motor with a maximum air consumption of 2.4 m³ per minute at an inlet air pressure of 7 bar
- Oil yield 1st stage: 10 l/min
- Oil flow: 2nd stage: 1.3 l/min
- Externally adjustable pressure control valve for pressure settings up to 700 bar
- Facilities for storing cables and hoses
- Supplied with robust protective frame, pressure gauge, FRL unit
- Weight: 42 kg
