Product description

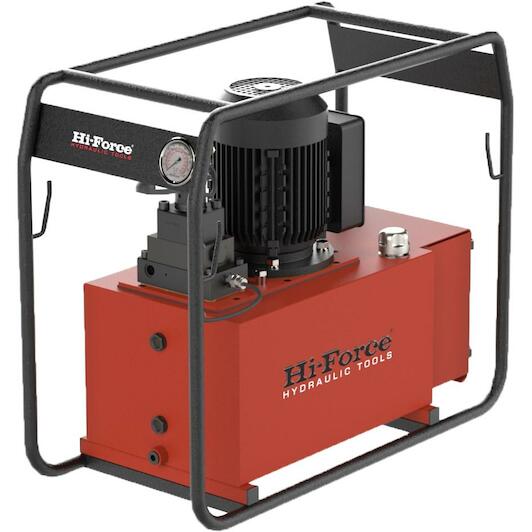

- 400V 3-phase electric driven pump
- Working pressure 700 bar
- Two-stage version
- With solenoid valve
- Remote control for valve control, 3-metre cable
- Oil tank 25 litres
- Load hold function on 3- and 4-way versions
- Externally adjustable pressure control valve for pressure settings up to 700 bar
- Completely enclosed, fan-cooled, low-noise electric motor
- Facilities for storing cables and hoses
- Supplied with robust protective frame, pressure gauge
- All models with 380/440V are suitable for both 50 Hz and 60 Hz operation
- Oil output 1st stage: 10 l/min
- Oil output: 2nd stage: 1 l/min
- Switchover pressure 70 bar
- Weight: 64 kg
