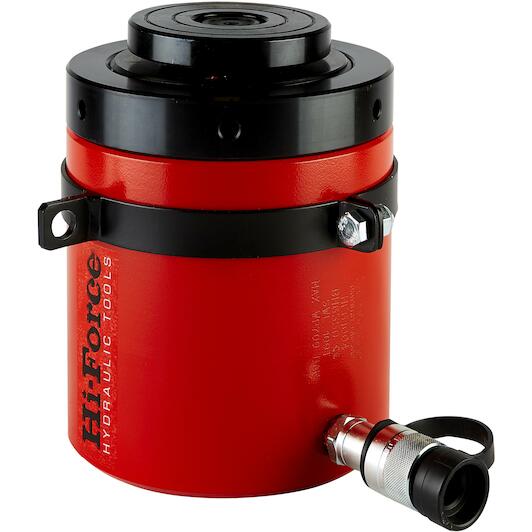

HI-FORCE HFG1004 single-acting lock nut cylinder, 109 tonnes, stroke length 100 mm

Name: HI-FORCE HFG1004 single-acting lock nut cylinder, 109 tonnes, stroke length 100 mm
Brand: HI-FORCE
SKU: 06002500
Price: 2872.54 EUR
Availability: PreOrder

Supplier number: HI-FORCE HFG1004 | EAN 5056388005897

2,872.54 tax incl.

€2,374.00 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

Ordered before 20:00 - delivered as of 10/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium
Manual in your language included

↓ Documents (2) ✆ Talk to a specialist

Consumables

HI-FORCE CF1 female coupling 3/8" NPT male thread

54.45

€45.00 excl. VAT

Delivery time average 1 days.

HI-FORCE PPC1 plastic universal dust cover for CF1 and CM1 couplings

7.26

€6.00 excl. VAT

Delivery time average 1 days.

Product information

€2,872.54

tax incl.

Key features according to our expert

Diameter: 185 mm
Stroke length: 100 mm
Max. capacity: 109 t
Height: 240 mm

Product description

Hydraulic lock nut cylinder
Single acting, load return
Capacity of 109 tonnes
Stroke length of 100 mm
Working pressure 700 bar
The mechanical locknut allows the load to be locked for a longer period of time
Suitable for vertical lifting only
Screwed plunger fitted with tilting saddle as standard to reduce the risk of side loading
Nitrocarbonised cylinder housing and plunger for enhanced corrosion protection
Bearing surfaces with minimal friction
Anti-extrusion seals for improved high-pressure performance
Stroke restriction port to limit the stroke length
Optional pivot pin for easy rotation of the retaining ring: TTB10
Oil capacity: 1.53 l

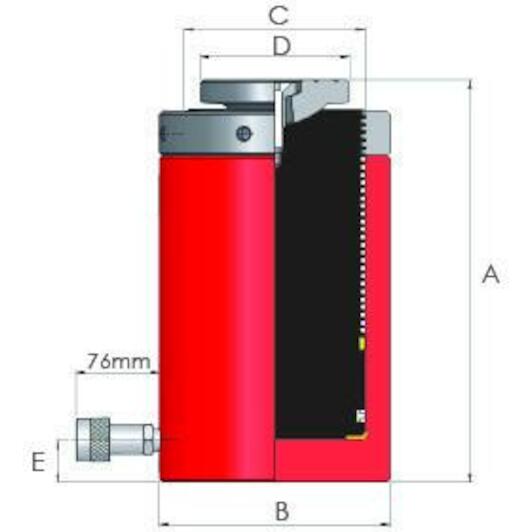

Construction height: 240 mm
Cylinder diameter: 178 mm
Piston diameter: 140 mm
Weight: 47.5 kg
