Product description

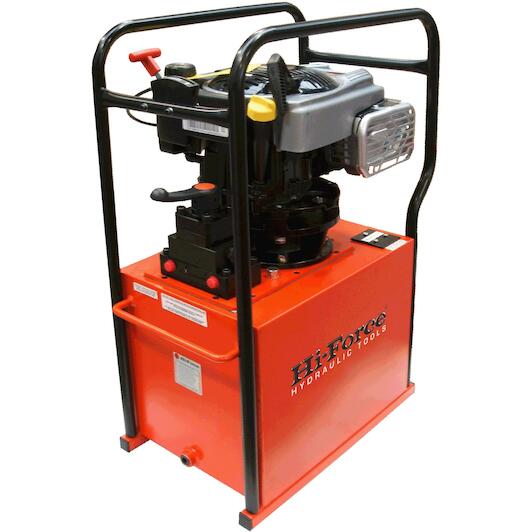

- Petrol/hydraulic pump
- Version: single acting, 2-stage
- Valve version P-T PLAAT
- Valve function outlet - normal charge hold-back - return
- Oil output 1st stage: 10.0 l/min up to 70 bar
- Oil output 2nd stage: 1.30 l/min
- Switchover pressure 70 bar
- Oil capacity: 25 litres
- Petrol engine power: 3.35 Kw - 5 hp ( 4 stroke )
- Max. working pressure: 700 bar

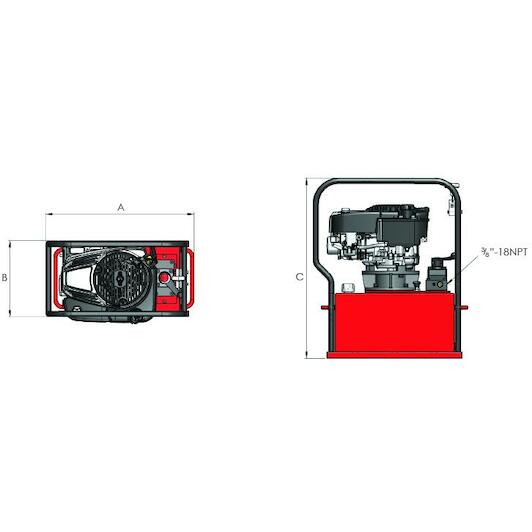

- Dimensions (LxWxH) 570 x 306 x 686 mm
- Weight: 70.5 kg
- With externally adjustable overpressure safety valve
- All-round protection by a roll bar
- Manually operated valve for load holding as standard
