What is the measuring range and graduation of this dial indicator?

It offers a measuring range of 5 mm with a 0.01 mm graduation and a 0-100 dial reading.

What is the stem diameter of the Mitutoyo 1044AB?

The mounting stem has a standard diameter of 8 mm.

What is the benefit of the flat back design?

A flat back without a mounting lug enables compact, flush mounting in custom fixtures and magnetic stands.

What is the outer dial diameter?

The dial indicator has a compact bezel diameter of 41 mm.

What thread does the contact point use?

The interchangeable contact point features a standard M2.5 x 0.45 thread.

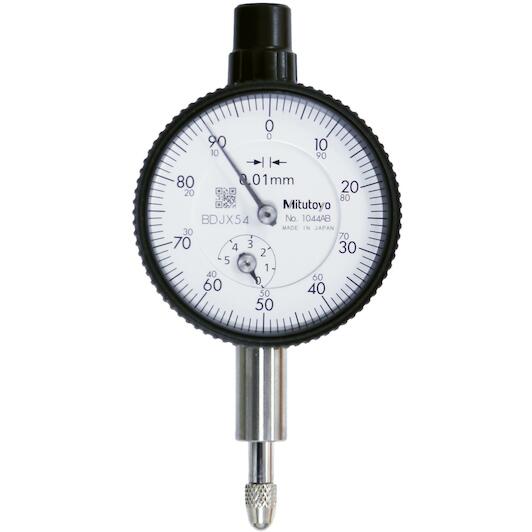

MITUTOYO 1044AB dial gauge with flat back, ISO version 5mm, 0.01mm

Name: MITUTOYO 1044AB dial gauge with flat back, ISO version 5mm, 0.01mm
Brand: MITUTOYO
SKU: 03219573
Price: 68.2 EUR
Availability: PreOrder

Supplier number: MITUTOYO 1044AB | EAN 4946368841267

Recommended Retail Price €77.32

68.20 tax incl.

€56.36 excl. VAT (incl. all environmental contributions)

On order: delivered from 14/10/2026

Ordered before 20:00 - delivered as of 14/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Accurate alignment with Mitutoyo

Practical benefits

High precision measurement scale: The fine 0,01 mm graduations let you detect and read minimal dimensional variations with ease.
Compact housing for tight spots: A slim 41 mm outer diameter allows you to measure comfortably even inside narrow spaces.
Flat back for rigid mounting: The flat back design provides seamless and solid integration onto your measuring fixtures.

In a nutshell

The right choise for

With the Mitutoyo 1044AB dial indicator, you achieve high precision alignment and dimensional inspection even in confined spaces. Its compact 41 mm outer diameter and flat back design allow for seamless, flush mounting into fixtures and magnetic stands without an interfering lug. Featuring a 5 mm measuring range with a clear 0-100 dial reading in 0.01 mm graduations, it helps you detect minimal runout and part variations instantly on lathes, milling machines, and surface plates. The standard 8 mm stem and M2.5 x 0.45 interchangeable contact point ensure dependable stability for all your machining setups.

Product information FAQ

€68.20

tax incl.

Key features according to our expert

Measuring range: 5 mm
Graduation (dial): 0 - 100
Scale division: 0,01 mm mm
Diameter: 41 mm

Product description

This is a compact, dial gauge with a 0.01 mm scale and a Ø40mm housing and a measuring range of 5mm
Ideal for use in applications in confined spaces.

All Features

Measuring range: 5 mm
Graduation (dial): 0 - 100
Scale division: 0,01 mm mm
Diameter: 41 mm

Brand MITUTOYO
03219573
EAN 4946368841267
Supplier number MITUTOYO 1044AB

Frequently asked questions about this product

Answered by specialists

What is the measuring range and graduation of this dial indicator?: It offers a measuring range of 5 mm with a 0.01 mm graduation and a 0-100 dial reading.
What is the stem diameter of the Mitutoyo 1044AB?: The mounting stem has a standard diameter of 8 mm.
What is the benefit of the flat back design?: A flat back without a mounting lug enables compact, flush mounting in custom fixtures and magnetic stands.
What is the outer dial diameter?: The dial indicator has a compact bezel diameter of 41 mm.
What thread does the contact point use?: The interchangeable contact point features a standard M2.5 x 0.45 thread.
