Product description:

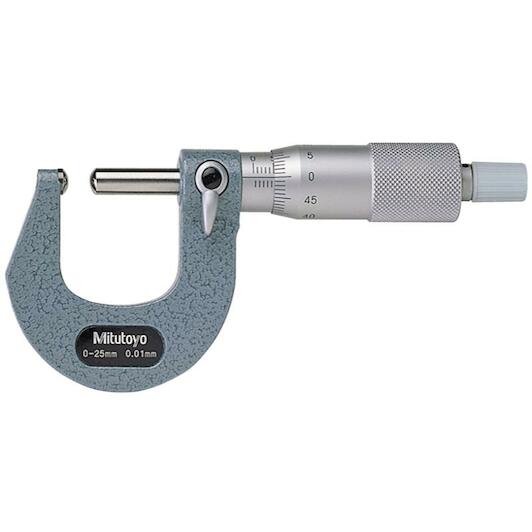

- This Tube Micrometer allows you to measure curved surfaces such as the wall thickness of tubes, bearings and rings.
Supplier number:
MITUTOYO 115-116
|
EAN
4946368010427
195.40
tax incl.
€161.49 excl. VAT (incl. all environmental contributions)
Accurate curved measurements with Mitutoyo precision
Practical benefits- Ideal for curved surfaces: The spherical anvil lets you accurately measure the wall thickness of tubes, pipes, and rings.
- Consistent measuring pressure: The integrated ratchet stop ensures repeatable results by applying uniform force during every measurement cycle.
- Wear resistant carbide tips: Carbide-tipped measuring faces provide outstanding durability and maintain accurate dimensions over long-term workshop use.
In a nutshell
The right choise forWith the Mitutoyo 115-116 outside micrometer, you can reliably measure the wall thickness of tubes, rings, and curved components. Where standard flat anvils fail, the spherical anvil and flat spindle design deliver exact point contact on rounded surfaces. Covering a measuring range of 25 to 50 mm with a 0.01 mm graduation, it gives you the exact precision required for quality inspections and machining. The integrated ratchet stop guarantees uniform, repeatable measuring pressure to eliminate errors from excessive force. Featuring wear-resistant carbide-tipped measuring faces and an included setting standard, this tool delivers dependable accuracy across all your workshop tasks.
Product information
Key features according to our expert
- Micrometer type: Outside micrometer
- Min. measuring value: 25 mm
- Max. measuring value: 50 mm
- Scale division: 0,01 mm mm
All Features
- Micrometer type
- Outside micrometer
- Min. measuring value
- 25 mm
- Max. measuring value
- 50 mm
- Scale division
- 0,01 mm mm
- Brand MITUTOYO
- EAN 4946368010427
- Supplier number MITUTOYO 115-116
Frequently asked questions about this product
Answered by specialists
- What is this micrometer used for?
- It is designed to accurately measure the wall thickness of tubes, rings, and curved surfaces.
- What is the measuring range of this model?
- The measuring range is 25 mm to 50 mm with a graduation of 0.01 mm.

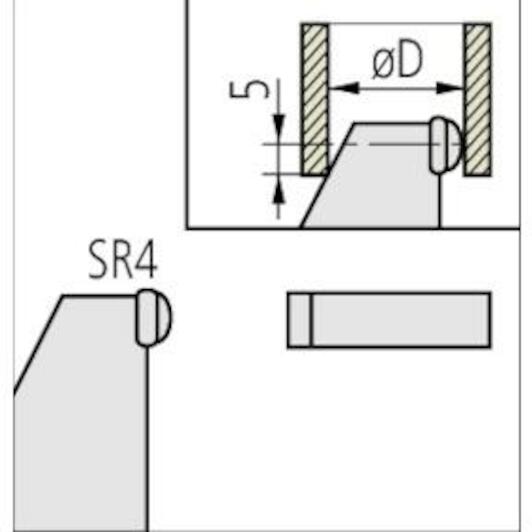

- What shape are the anvil and spindle?
- This type E model features a spherical anvil and a flat spindle for measuring curved parts.
- How does it ensure consistent measuring force?
- The integrated ratchet stop mechanism provides uniform and repeatable measuring pressure.
- Is a setting standard included?
- Yes, a reference standard bar is included with this 25 to 50 mm model.
