What is the measuring range of this micrometer head?

The measuring range is 13 to 0 mm (reverse reading) with a graduation of 0.01 mm.

How do you mount the Mitutoyo 148-864 into a fixture or machine?

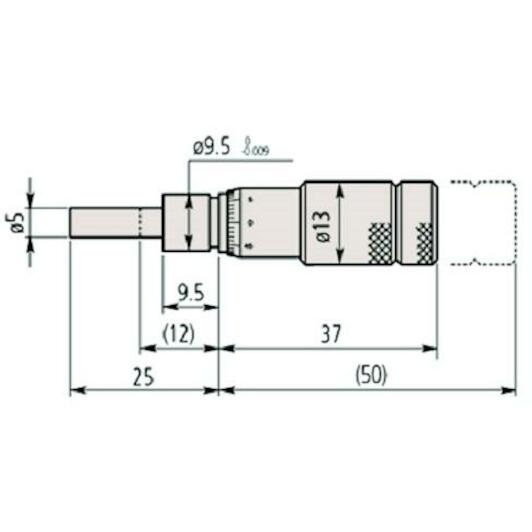

You secure it into a bore using the 9.5 mm stem with the included clamp nut.

Does this micrometer head feature a spindle lock?

Yes, this model includes a spindle lock to securely hold the position.

What type of measuring face does the spindle have?

The spindle has a flat measuring face made of hardened tool steel for accurate positioning.

Can you adjust the zero position on this unit?

Yes, the zero-adjustable thimble allows you to set zero at any position by loosening the setscrew.

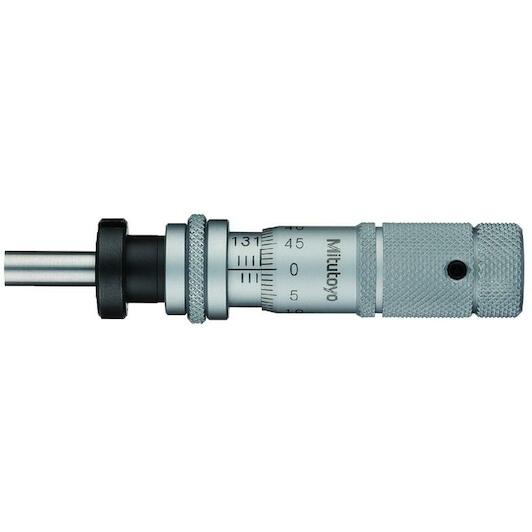

MITUTOYO 148-864 installation thread gauge 13-0mm with clamping nut and clamping device

Name: MITUTOYO 148-864 installation thread gauge 13-0mm with clamping nut and clamping device
Brand: MITUTOYO
SKU: 02256728
Price: 103.4 EUR
Availability: PreOrder

Supplier number: MITUTOYO 148-864 | EAN 4946368021652

103.40 tax incl.

€85.45 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

Ordered before 20:00 - delivered as of 10/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Precise adjustments with Mitutoyo

Practical benefits

Clear reverse reading scale: The reverse graduation from 13 to 0 mm allows you to read dimensions directly and accurately in specialized fixtures.
Reliable integrated spindle lock: You secure the measuring spindle firmly in place with the built-in locking mechanism to prevent accidental shifts during operation.
Rigid clamp nut mounting: The clamp nut stem enables you to install the micrometer head securely and rigidly into machines or custom tooling.

In a nutshell

The right choise for

With the Mitutoyo 148-864 micrometer head, you integrate precise linear adjustments directly into machines, custom fixtures, and test jigs. Thanks to the reverse reading graduation from 13 to 0 mm with a 0.01 mm resolution, you can read displacement values directly and accurately in specialized setups. The 9.5 mm stem with clamp nut ensures rigid, play-free mounting into machine frames. With the built-in locking mechanism, you securely lock the spindle in place to prevent accidental movement during operation. Combined with a flat hardened tool steel measuring face and an adjustable thimble for zero setting, you maintain complete control over fine adjustments.

Product information FAQ

€103.40

tax incl.

Key features according to our expert

Micrometer type: Built-in micrometer
Max. measuring value: 13 mm
Scale division: 0,01 mm mm

Product description:

These are a standard type of small size micrometer heads with a zero-adjustable thimble.
They offer the following benefits:
- You can make a zero-setting at any position by loosening the setscrew in the thimble.

All Features

Micrometer type: Built-in micrometer
Max. measuring value: 13 mm
Scale division: 0,01 mm mm

Brand MITUTOYO
02256728
EAN 4946368021652
Supplier number MITUTOYO 148-864

Frequently asked questions about this product

Answered by specialists

What is the measuring range of this micrometer head?: The measuring range is 13 to 0 mm (reverse reading) with a graduation of 0.01 mm.
How do you mount the Mitutoyo 148-864 into a fixture or machine?: You secure it into a bore using the 9.5 mm stem with the included clamp nut.
Does this micrometer head feature a spindle lock?: Yes, this model includes a spindle lock to securely hold the position.
What type of measuring face does the spindle have?: The spindle has a flat measuring face made of hardened tool steel for accurate positioning.
Can you adjust the zero position on this unit?: Yes, the zero-adjustable thimble allows you to set zero at any position by loosening the setscrew.
