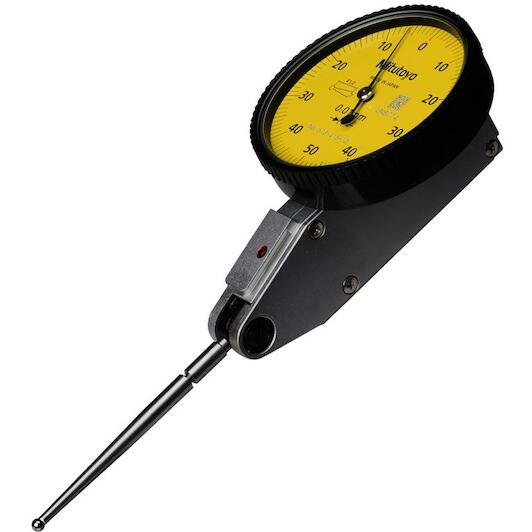

MITUTOYO 513-415-10E swivelling probe horizontal model - 1mm, 0.01mm

Name: MITUTOYO 513-415-10E swivelling probe horizontal model - 1mm, 0.01mm
Brand: MITUTOYO
SKU: 02804307
Price: 169.6 EUR
Availability: PreOrder

Supplier number: MITUTOYO 513-415-10E | EAN 4946368675916

169.60 tax incl.

€140.17 excl. VAT (incl. all environmental contributions)

On order: delivered from 03/10/2026

Ordered before 20:00 - delivered as of 03/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

High precision with Mitutoyo engineering

Practical benefits

Access to narrow spaces: The long carbide stylus lets you measure recessed features and deep surfaces with ease.
Automatic measuring direction reversal: A clutchless mechanism automatically switches the measuring direction for continuous and smooth operation.
Clear glare free reading: The scratch-resistant flat crystal face ensures you read the 0.01 mm graduations clearly at all times.

In a nutshell

The right choise for

With the Mitutoyo 513-415-10E dial test indicator, you align workpieces and fixtures with 0.01 mm precision on milling machines and lathes. Thanks to the 44.5 mm long carbide stylus, you effortlessly measure deep bores and tight spaces where standard dial gauges cannot reach. The clutchless mechanism automatically reverses the measuring direction, ensuring smooth, uninterrupted operation without manual adjustments. You can clearly read the 0-50-0 dial across its 1 mm measuring range through the scratch-resistant, glare-free flat crystal face. With the included dovetail mount and 8 mm clamping stem, you secure the indicator quickly for accurate workshop inspections.

Product information FAQ

€169.60

tax incl.

Key features according to our expert

Min. measuring value: 1 mm
Max. measuring value: 1 mm
Scale: 0,01 mm

Product description:

Drastically enhanced durability, sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.
Preventing dust and oil from penetrating to the dial face. The O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
Multi-layer coatings on the Crystal.
Hard and non-glare coatings on the crystal inhibit scratches, contamination and glare on the surface.
Jewelled bearings and precision gears and pinions give you smooth, accurate movement and quick response.

All Features

Min. measuring value: 1 mm
Max. measuring value: 1 mm
Scale: 0,01 mm

Brand MITUTOYO
02804307
EAN 4946368675916
Supplier number MITUTOYO 513-415-10E

Frequently asked questions about this product

Answered by specialists

What is the measuring range of this Mitutoyo dial test indicator?: It features a 1 mm measuring range with a 0.01 mm graduation and a 0-50-0 dial reading.
What is the benefit of the long stylus?: The 44.5 mm long contact point makes it easy to measure deep grooves and hard-to-reach recessed areas.
Does the indicator feature automatic measuring reversal?: Yes, the clutch-free mechanism automatically reverses measuring direction without manual adjustment.
What mounting stem is included?: The tool comes with a dovetail mount and an 8 mm clamping stem.
Is the indicator protected against workshop debris?: Yes, the one-piece bezel with an O-ring seal and scratch-resistant flat crystal protects against dust and splashes.
