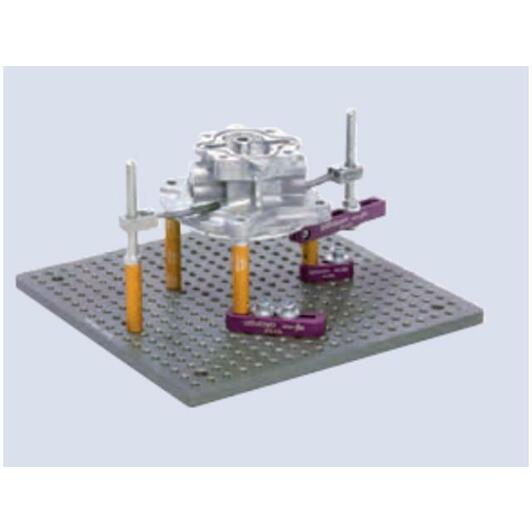

MITUTOYO K551218 Eco-Fix clamping system kit S 66-piece

Scope of delivery

• 1x K551034 - Bottom plate 250 mm x 250 mm2x
• K551032 - Clamping claw
• 2x K551024 - Location pin Ø 12 mm x 13 mm2x
• K551025 - Location pin Ø 12 mm x 25 mm
• 1x K551026 - Location pin Ø 12 mm x 50 mm
• 1x K551027 - Location pin Ø 12 mm x 100 mm1x
• K551028 - Location pin Ø 20 mm x 13 mm1x
• K551029 - Location pin Ø 20 mm x 25 mm1x
• K551030 -
• Location pin Ø 20 mm x 50 mm1x
• K551031 - Location pin Ø 20 mm x 100 mm1x
• K551040 - Adjustable location pin Ø 20 mm1x
• K551041 - Adjustable location pin Ø 12 mm3x
• K551042 - Location pin Ø 12 mm with bore 6 mm1x
• K551035 - Capture bar small
• 1x K551036 - Capture bar large
• 1x K551044 - Capture bar L = 90 mm, Ø 12 mm1x
• K551045 - Collecting bracket L = 120 mm , Ø 20 mm1x
• K551046 - Slotted nut for collecting bracket h = 12 mm1x
• K551047 - Slotted nut for collecting bracket h = 15 mm2x
• K550262 - V-block mini, Ø12mm2x
• K550261 - Cone receiver mini, Ø12 mm1x
• K550250 - Stop element mini, Ø 6 mm1x
• K550247 - Back square mini, Ø 6 mm2x
• K550888 - Straight pin Ø 6 mm x 20 mm2x
• K550889 - Straight pin Ø 6 mm x 30 mm2x
• K550890 - Straight pin Ø 6 mm x 40 mm2x
• K550716 - Threaded straight pin, M6x751x
• K550279 - Spring clamp, Ø 8 mm, L = 60 mm1x
• K550554 - Spring clamp, Ø 8 mm, L = 40 mm2x
• K550563 - Cylinder head screw M6 x 25 mm6x
• K550110 - Cylinder head screw M6 x 20 mm8x
• K550591 - Washer Ø 6,4 mm x Ø 17 mm
• 1x K551050 - Allen spanner 2 mm
• 1x K551051 - Allen spanner 3 mm1x
• K551052 - Allen spanner 4 mm1x
• K551053 - Allen spanner 5 mm1x
• K551054 - Double socket spanner 10-171x
• K551220 - Loading pick-up plate for manual eco-fix loading system3x
• K551221 - Ball screw Ø101x
• K551199 - Pair of handles for Eco-fix base plates
