pferd_43317017
PFERD

PFERD 10012/16,0 DIA 600 0,35 round brush narrow unturned RBU Ø 100 x 12 x 16 mm arbor hole DIAMANT filament wire-Ø 0.35 mm grit 600 - 43317017

424.90 tax incl.
€351.16 excl. VAT (incl. all environmental contributions)
On order: delivered from 13/07/2026
each

  • Ordered before 20:00 - delivered as of 13/07/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

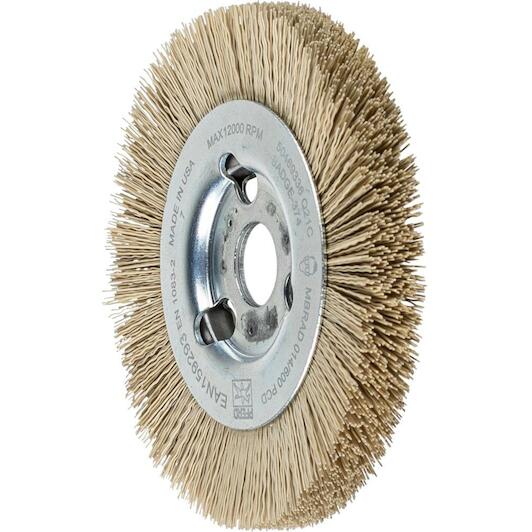

  • PFERD Wheel brush slim crimped RBU dia. 100x12x16 mm hole DIAMOND filament dia. 0.35 mm grit 600

Characteristics

  • Brushes with diamond (DIA) filament material are suitable for applications that place particular demands on the aggressiveness of the brush
  • They are primarily used on materials with high material strength
  • Plastic filament withstands temperatures up to 220 °C
  • Excellent for medium-duty hand-held or automated brushing of workpieces with large surfaces

Advantages:

  • Can be used with all commercially available stationary drive systems and bench grinders thanks to the variable hole diameter.
  • The special design enables bunching to create wide gapless rollers. This enables a uniform surface finish to be achieved.
  • Highly flexible, enabling optimal adjustment to the workpiece contour.
  • Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Key features according to our expert
  • Brush diameter: 100 mm
  • Connection type (machine): Bore
  • Material (brush filament): Plastic
  • Wire thickness: 0,35 mm
  • Twisted: No
  • Thickness: 12 mm
  • Max. no-load speed: 12000 rpm
  • Connection size (machine): 16 mm
Specifications / All features
  • Brand: PFERD
  • EAN: 4007220159293
  • Supplier number: PFERD 43317017
Brush diameter
100 mm
Connection type (machine)
Bore
Material (brush filament)
Plastic
Wire thickness
0,35 mm
Twisted
No
Thickness
12 mm
Max. no-load speed
12000 rpm
Connection size (machine)
16 mm
Filling material
Diamond (DIA)
Processing tasks
Cleaning
Workable materials 12
Steel grades with hardness > 54 HRC
Workable materials 16
Carbide
ø shaft hole
16
Length, trim
19
Processing tasks 1
Deburring
Workable materials 14
Titanium
Max. rpm
12000
ø outside metric
100
Workable materials 3
Cobalt-based alloys
Workable materials 1
Cast iron
Workable materials 7
Nickel- or titanium-based superalloys
Workable materials 10
Stainless steel (INOX)
ø topping material
0.35
Rpm, opt., to
5000
Grit size
600
Width metric
12
Workable materials 5
Heat-resistant materials
Workable materials 6
Nickel-based alloys (e.g. Inconel and Hastelloy)
Workable materials
Bronze
Workable materials 2
Cast steel
Workable materials 9
soft titanium alloys (tensile strength 500 N/mm²)
Workable materials 11
Steel, cast steel
Workable materials 15
Titanium alloys
Recording system
Shaft hole
Workable materials 17
Wear-resistant coatings (spray-on and burnt alloys)
Workable materials 13
Steel up to 1,200 N/mm² (< 38 HRC)
Workable materials 8
Other non-ferrous metals
Workable materials 4
Non-ferrous metal hard
Rpm, opt., of
2000
