PFERD 1602/2,34 ST 0,10 round miniature brush RBU Ø 16 x 2 mm shank Ø 2.34 mm steel wire Ø 0.10 - 43100301

Supplier number: PFERD 43100301 | EAN 4007220031957
This product has been discontinued.



Product information

Key features according to our expert

  • Brush diameter: 16 mm
  • Connection type (machine): Shank
  • Material (brush filament): Steel wire
  • Wire thickness: 0,1 mm
  • Twisted: No
  • Thickness: 2 mm
  • Max. no-load speed: 12000 rpm
  • Connection size (machine): 2,34 mm

Product description

  • PFERD Miniature wheel brush RBU dia. 16x2 mm shank dia. 2.34 mm steel wire dia. 0.10

Characteristics

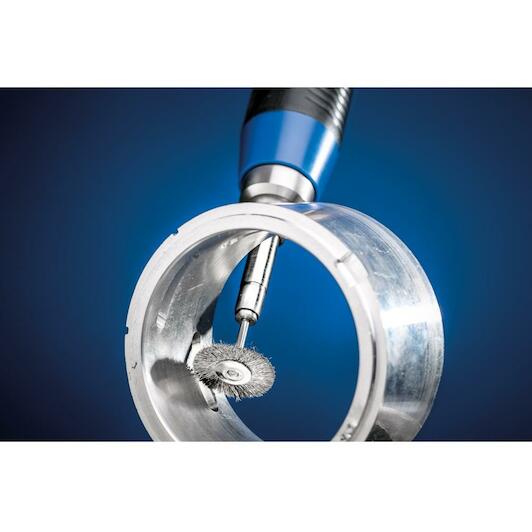

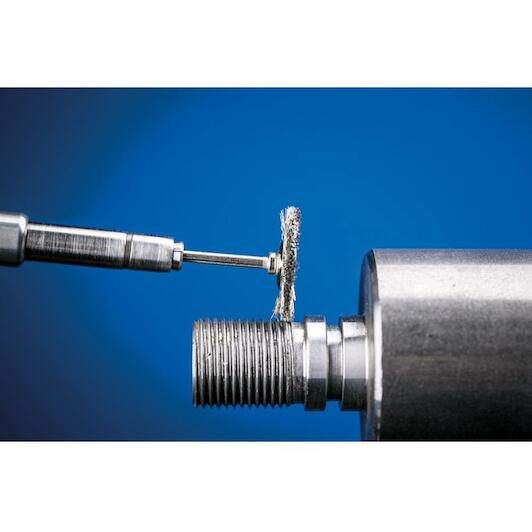

  • Suitable for light brushing such as deburring, cleaning and polishing
  • PFERD offers a wide range of miniature brushes for precision work
  • These can be used on flexible shaft drives, micro motors or electric grinders
  • Steel wire is the most common filament material
  • Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring
  • PFERD special wire has high tensile strength and bending fatigue strength
  • This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications
  • Steel wire withstands temperatures up to 300 °C

Advantages:

  • Maximum precision and efficiency in work on delicate workpieces.
  • Enables focused working in hard-to-reach areas.
  • Long tool life through use of PFERD special wire.
  • Creates fine surfaces.

All Features

Brush diameter
16 mm
Connection type (machine)
Shank
Material (brush filament)
Steel wire
Wire thickness
0,1 mm
Twisted
No
Thickness
2 mm
Max. no-load speed
12000 rpm
Connection size (machine)
2,34 mm
Filling material
Steel wire (ST)
Processing tasks
Cleaning
Processing tasks 3
Removing oxide layers
Length, trim
3
Processing tasks 1
Deburring
Workable materials 3
Elastomer
Processing tasks 5
Roughening
Max. rpm
12000
ø outside metric
16
Workable materials 5
Steel grades with hardness > 54 HRC
Workable materials 7
Thermoplastics
ø topping material
0.1
Rpm, opt., to
10000
Workable materials 1
Cast steel
Processing tasks 4
Removal of lacquers
Workable materials 4
Steel, cast steel
Width metric
2
Workable materials 8
Wood
ø shaft metric
2.34
Length, total
46
Recording system
Pin
Processing tasks 2
Derusting
Workable materials 2
Duroplast
Workable materials 6
Steel up to 1,200 N/mm² (< 38 HRC)
Workable materials
Cast iron
Rpm, opt., of
5000
  • Brand PFERD
  • EAN 4007220031957
  • Supplier number PFERD 43100301
