PFERD

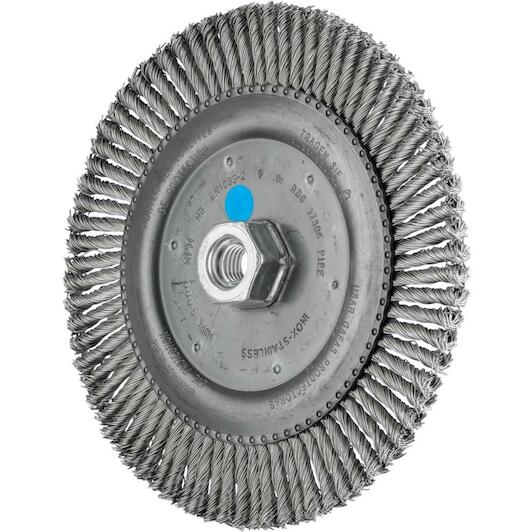

PFERD 17806/M14 PIPE INOX 0,50 76Z PIPELINE brush twisted RBG Ø 178 x 6 mm M14 stainless steel wire-Ø 0.50 mm angle grinder - 43303817

105.72 tax incl.
€87.37 excl. VAT (incl. all environmental contributions)
On order: delivered from 04/09/2026
each

The minimum purchase order quantity for the product is 10.

  • Ordered before 20:00 - delivered as of 04/09/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

  • PFERD PIPELINE brush knotted RBG dia. 178x6 mm M14 stainless steel wire dia. 0.50 mm angle grinders

Characteristics

  • Aggressive and robust brush that is able to withstand high mechanical loads
  • Perfect for heavy-duty brushing in pipeline and container construction
  • In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD uses wire quality 1,4310 (V2A) for all INOX brushes
  • Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life
  • All PFERD brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A
  • The wire quality 1,4310 tends to become ferromagnetic in the case of cold working; i
  • E
  • It can be attracted using magnets
  • ;The reason for this is a change in the microstructure caused by deformation ( e.g. during the wire drawing process)
  • This does not have any impact on the quality and corrosion resistance of the INOX filament
  • The filament is still resistant to corrosion
  • Stainless steel wire (INOX) withstands temperatures up to 450 °C

Advantages:

  • The brush is degreased and does not leave any oil residue on the workpiece.
  • Aggressive brushing effect due to the very stiff wire knots.
  • Extra-slim design enables optimal access to hard-to-reach areas such as root weld seams.
  • Very good corrosion resistance.
Key features according to our expert
  • Brush diameter: 178 mm
  • Connection type (machine): Internal thread
  • Material (brush filament): Stainless steel
  • Wire thickness: 0,5 mm
  • Twisted: Yes
  • Thickness: 6 mm
  • Max. no-load speed: 9000 rpm
  • Connection size (machine): M14
Specifications / All features
  • Brand: PFERD
  • EAN: 4007220751404
  • Supplier number: PFERD 43303817
Brush diameter
178 mm
Connection type (machine)
Internal thread
Material (brush filament)
Stainless steel
Wire thickness
0,5 mm
Twisted
Yes
Thickness
6 mm
Max. no-load speed
9000 rpm
Connection size (machine)
M14
Processing tasks 1
Deburring
Number, threaded ends
76
Workable materials 1
Bronze
Processing tasks
Cleaning
Processing tasks 3
Oxidation removal
ø shaft hole
0
Length, trim
28
Processing tasks 9
Corner seam machining
ø outside metric
178
Filling material
Stainless steel wire (INOX)
Processing tasks 5
Removing oxide layers
Max. rpm
9000
Workable materials 9
Stainless steel (INOX)
Workable materials 3
Non-ferrous metal hard
Workable materials 7
Other non-ferrous metals
Workable materials 10
Titanium
ø topping material
0.5
Rpm, opt., to
8500
Workable materials 5
Nickel-based alloys (e.g. Inconel and Hastelloy)
Processing tasks 4
Removal of run-on colours
Workable materials 4
Heat-resistant materials
Workable materials 2
Cobalt-based alloys
Recording x-lock
ohne
Workable materials
Aluminium
Workable materials 6
Nickel- or titanium-based superalloys
Processing tasks 2
Derusting
Width metric
6
Processing tasks 6
Removal of lacquers
Placement of toppings
twisted Pipeline
Workable materials 11
Titanium alloys
Recording system
Thread
ø thread
M14x2
Processing tasks 8
welding
Processing tasks 7
V-seam machining
Workable materials 8
soft titanium alloys (tensile strength 500 N/mm²)
Rpm, opt., of
3600
