Product description

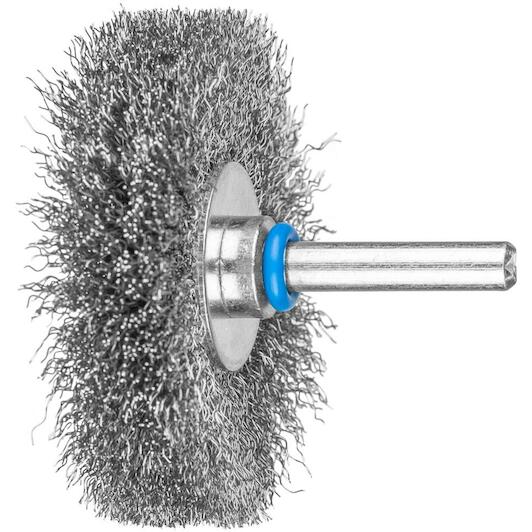

- PFERD Wheel brush crimped RBU dia. 60x10 mm shank dia. 6 mm stainless steel wire dia. 0.20
Characteristics
- Generally suitable for cleaning, derusting, smoothing, cleaning of weld seams, light deburring, and removal of corrosion and paint
- In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD uses wire quality 1,4310 (V2A) for all INOX brushes
- Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life
- All PFERD brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A
- The wire quality 1,4310 tends to become ferromagnetic in the case of cold working; i
- E
- It can be attracted using magnets
- ;The reason for this is a change in the microstructure caused by deformation ( e.g. during the wire drawing process)
- This does not have any impact on the quality and corrosion resistance of the INOX filament
- The filament is still resistant to corrosion
- Stainless steel wire (INOX) withstands temperatures up to 450 °C
Advantages:
- Highly flexible, enabling optimal adjustment to the workpiece contour.
- Very good corrosion resistance.
- Creates fine surfaces.
Key features according to our expert
-
Brush diameter: 60 mm
-
Connection type (machine): Shank
-
Material (brush filament): Stainless steel
-
Wire thickness: 0,2 mm
-
Twisted: No
-
Thickness: 10 mm
-
Max. no-load speed: 15000 rpm
-
Connection size (machine): 6 mm
Specifications / All features
-
Brand:
PFERD
-
03164105
-
EAN:
4007220104798
-
Supplier number:
PFERD 43104010
- Brush diameter
- 60 mm
- Connection type (machine)
- Shank
- Material (brush filament)
- Stainless steel
- Wire thickness
- 0,2 mm
- Twisted
- No
- Thickness
- 10 mm
- Max. no-load speed
- 15000 rpm
- Connection size (machine)
- 6 mm
- Filling material
- Stainless steel wire (INOX)
- Workable materials 1
- Bronze
- Processing tasks
- Cleaning
- Processing tasks 3
- Removal of run-on colours
- Length, trim
- 15
- Processing tasks 1
- Deburring
- Workable materials 3
- Non-ferrous metal hard
- Processing tasks 5
- Removal of lacquers
- Max. rpm
- 15000
- ø outside metric
- 60
- Workable materials 9
- Stainless steel (INOX)
- Workable materials 7
- Other non-ferrous metals
- Workable materials 10
- Titanium
- ø topping material
- 0.2
- Rpm, opt., to
- 9800
- Workable materials 5
- Nickel-based alloys (e.g. Inconel and Hastelloy)
- Processing tasks 4
- Removing oxide layers
- Workable materials 4
- Heat-resistant materials
- Workable materials 6
- Nickel- or titanium-based superalloys
- Workable materials
- Aluminium
- Workable materials 2
- Cobalt-based alloys
- Width metric
- 10
- Processing tasks 2
- Derusting
- Processing tasks 6
- Roughening
- Workable materials 11
- Titanium alloys
- Recording system
- Pin
- Length, total
- 50
- ø shaft metric
- 6
- Workable materials 8
- soft titanium alloys (tensile strength 500 N/mm²)
- Rpm, opt., of
- 6000
