Product description

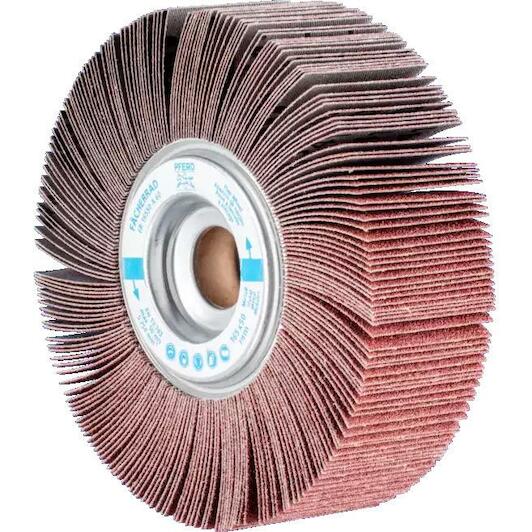

- PFERD Flap grinding wheel FR dia. 165x50 mm centre hole dia. 25.4 mm A60 for general use
Characteristics
- On unmounted flap wheels, the flaps made of coated abrasive are arranged radially around the tool axis in a fan-type structure
- Their flexibility enables them to adapt perfectly to the contours of the workpiece
- The abrasive grain is embedded in the sturdy, flexible cloth backing material by means of a resinoid bond
- In ISO 5429, unmounted flap wheels are designated as ""flap wheels""
- For general applications from coarse to fine grinding
Advantages:
- Highly flexible, enabling optimal adjustment to the contour.
- Consistently high stock removal rate over the entire tool life as new, aggressive abrasive is constantly exposed.
- Can be used face-down very close to edges and in corners thanks to special clamping system.
Key features according to our expert
-
Diameter (flap wheel): 165 mm
-
Grit size: 60
-
Connection size (machine): 25,4 mm
-
Connection type (machine): Bore
-
Width: 50 mm
Specifications / All features
-
Brand:
PFERD
-
03206343
-
EAN:
4007220469781
-
Supplier number:
PFERD 44731061
- Diameter (flap wheel)
- 165 mm
- Grit size
- 60
- Connection size (machine)
- 25,4 mm
- Connection type (machine)
- Bore
- Width
- 50 mm
- Processing tasks 1
- Fine-tuning step by step
- Processing tasks
- Deburring
- Processing tasks 3
- Texturing (matting, seamless matting and satin)
- ø shaft hole
- 25.4
- Max. rpm
- 5700
- Processing tasks 5
- welding
- Workable materials 5
- Grey/lamellar/nodular cast iron (GG/GJL, GGG/GJS)
- ø outside metric
- 165
- Workable materials 3
- Cast steel
- Workable materials 7
- Stainless steel (INOX)
- Abrasive
- Corundum A
- Workable materials 1
- Annealed cast iron
- Width metric
- 50
- Workable materials 9
- Steel up to 1,200 N/mm² (< 38 HRC)
- Workable materials 4
- Copper
- Workable materials 8
- Steel grades with hardness > 54 HRC
- Processing tasks 4
- Machining of surfaces
- Processing tasks 2
- Levelling
- Workable materials 2
- Brass
- Workable materials 6
- Hardened, heat-treated steels above 1,200 N/mm² (< 38 HRC)
- Workable materials
- Aluminium
- Rpm, opt.
- 3200
