PFERD FR 16550/25,4 CO-COOL 120 flap wheel 165x50 mm, bore Ø 25,4 mm, grain 120 for cool grinding on stainless steel - 44730312

This product has been discontinued.

Product information

Product description

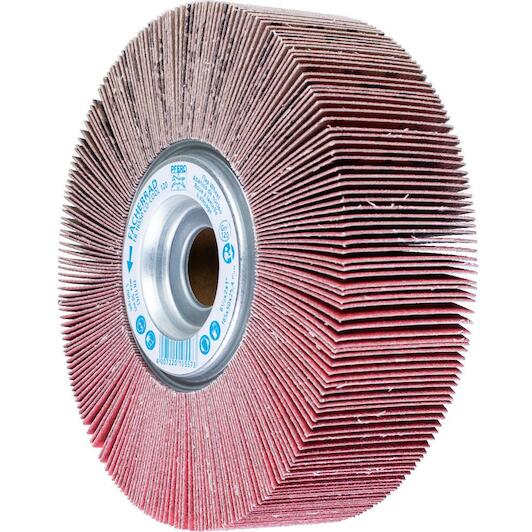

PFERD Flap grinding wheel FR dia. 165x50 mm centre hole dia. 25.4 mm CO-COOL120 for cool grinding on stainless steel

Characteristics

On unmounted flap wheels, the flaps made of coated abrasive are arranged radially around the tool axis in a fan-type structure
Their flexibility enables them to adapt perfectly to the contours of the workpiece
The abrasive grain is embedded in the sturdy, flexible cloth backing material by means of a resinoid bond
In ISO 5429, unmounted flap wheels are designated as ""flap wheels""
For aggressive grinding with maximum stock removal rate on hard materials which do not conduct heat well
Consistently high performance due to self-sharpening ceramic oxide grain
Active grinding additives in the coating substantially improve the stock removal rate, prevent clogging and result in cooler grinding

Advantages:

Highly flexible, enabling optimal adjustment to the contour.
Consistently high stock removal rate over the entire tool life as new, aggressive abrasive is constantly exposed.
Can be used face-down very close to edges and in corners thanks to special clamping system.

Key features according to our expert

Diameter (flap wheel): 165 mm
Grit size: 120
Connection size (machine): 25,4 mm
Connection type (machine): Bore
Width: 50 mm

Specifications / All features

Brand: PFERD
08077629
EAN: 4007220105573
Supplier number: PFERD 44730312

Diameter (flap wheel): 165 mm
Grit size: 120
Connection size (machine): 25,4 mm
Connection type (machine): Bore
Width: 50 mm
Processing tasks 1: Fine-tuning step by step
Processing tasks: Deburring
Processing tasks 3: Texturing (matting, seamless matting and satin)
Workable materials 12: Steel up to 1,200 N/mm² (< 38 HRC)
ø shaft hole: 25.4
Max. rpm: 5700
Processing tasks 5: welding
Workable materials 5: Cobalt-based alloys
ø outside metric: 165
Workable materials 3: Bronze
Workable materials 7: Grey/lamellar/nodular cast iron (GG/GJL, GGG/GJS)
Workable materials 10: Stainless steel (INOX)
Abrasive: Ceramic grit CO-COOL
Workable materials 1: Annealed cast iron
Width metric: 50
Workable materials 9: Nickel-based alloys (e.g. Inconel and Hastelloy)
Workable materials 4: Cast steel
Workable materials 8: Hardened, heat-treated steels above 1,200 N/mm² (< 38 HRC)
Workable materials 13: Titanium
Processing tasks 4: Machining of surfaces
Workable materials 11: Steel grades with hardness > 54 HRC
Processing tasks 2: Levelling
Workable materials 2: Brass
Workable materials 6: Copper
Workable materials: Aluminium
Rpm, opt.: 3200
