PFERD PBU 0505/2,34 ZHW miniature brush Ø 5 mm stylus Ø 2.34 mm white goat hair - 43200309

Supplier number: PFERD 43200309 | EAN 4007220032916
This product has been discontinued.



Product information

Key features according to our expert

  • Brush diameter: 5 mm
  • Connection type (machine): Shank
  • Material (brush filament): Goat hair
  • Twisted: No
  • Height: 45 mm
  • Connection size (machine): 2,34 mm

Product description

  • PFERD Miniature end brush PBU dia. 5 mm shank dia. 2.34 mm white goat hair

Characteristics

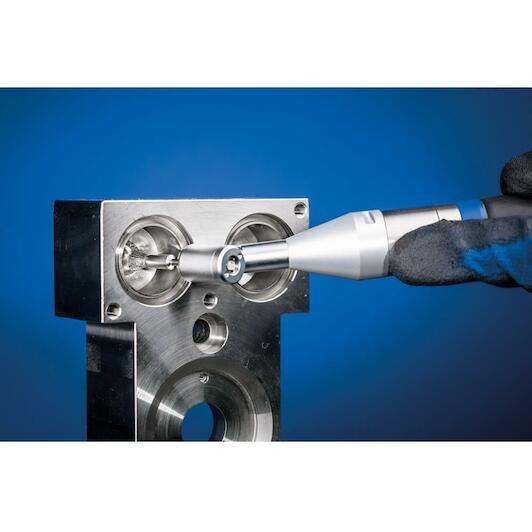

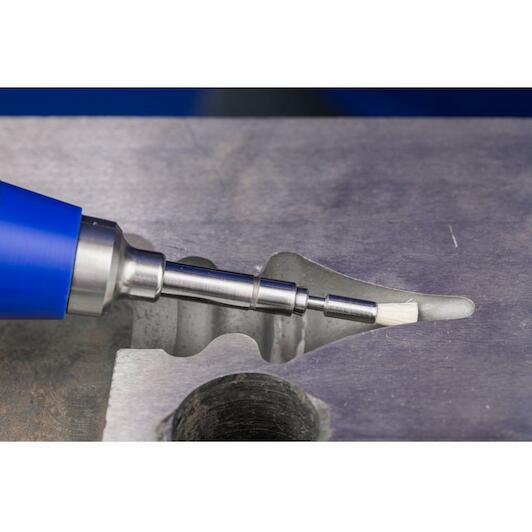

  • Suitable for light brushing such as deburring, cleaning and polishing
  • PFERD offers a wide range of miniature brushes for precision work
  • These can be used on flexible shaft drives, micro motors or electric grinders
  • Brushes with natural bristles (animal hair) are primarily suitable for light cleaning and dust removal, as well as for polishing (in combination with polishing pastes)
  • Goat hair is more flexible and softer than bristle
  • Natural bristles withstand temperatures up to 150 °C

Advantages:

  • Maximum precision and efficiency in work on delicate workpieces.
  • Optimal access to hard-to-reach areas such as drilled holes and cavities as the filament spreads out upon rotation.

All Features

Brush diameter
5 mm
Connection type (machine)
Shank
Material (brush filament)
Goat hair
Twisted
No
Height
45 mm
Connection size (machine)
2,34 mm
Processing tasks 1
Polishing
Workable materials 1
Brass
Processing tasks
Cleaning
Workable materials 12
soft titanium alloys (tensile strength 500 N/mm²)
Workable materials 16
Steel up to 1,200 N/mm² (< 38 HRC)
ø bowl
5
Length, trim
8
Workable materials 3
Cast iron
Filling material
Goat hair (ZHW)
Max. rpm
25000
ø outside metric
5
Workable materials 9
Nickel-based alloys (e.g. Inconel and Hastelloy)
Workable materials 14
Steel, cast steel
Workable materials 7
Non-ferrous metal hard
Workable materials 10
Nickel- or titanium-based superalloys
ø topping material
0
Rpm, opt., to
10000
Workable materials 5
Cobalt-based alloys
Workable materials 17
Titanium
Workable materials 4
Cast steel
Workable materials 2
Bronze
Workable materials
Aluminium
Workable materials 6
Copper
Workable materials 18
Titanium alloys
Workable materials 8
Heat-resistant materials
Workable materials 11
Other non-ferrous metals
Workable materials 15
Steel grades with hardness > 54 HRC
Recording system
Pin
Workable materials 19
Zinc
Length, total
45
ø shaft metric
2.34
Workable materials 13
Stainless steel (INOX)
Rpm, opt., of
4000
  • Brand PFERD
  • EAN 4007220032916
  • Supplier number PFERD 43200309
