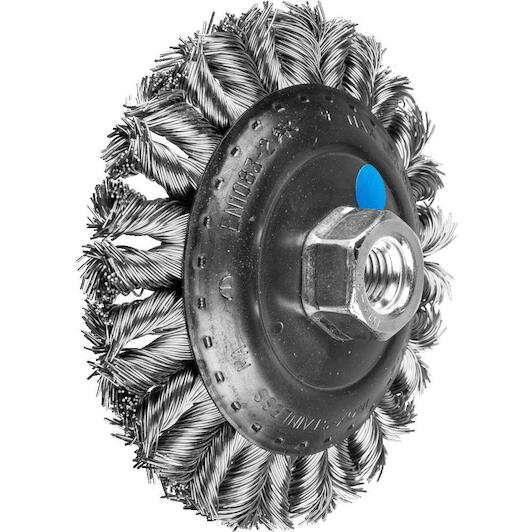

PFERD POS KBG 12515/M14 CT INOX 0,50 Combitwist disc brush twisted Ø 125x15 mm M14 stainless steel wire-Ø 0.50 mm - 43317016

Supplier number: PFERD 43317016 | EAN 4007220003855
This product has been discontinued.



Product information

Key features according to our expert

  • Brush diameter: 125 mm
  • Connection size (machine): M14
  • Connection type (machine): Internal thread
  • Wire thickness: 0,5 mm
  • Twisted: Yes
  • Thickness: 15 mm
  • Max. no-load speed: 15000 rpm
  • Material (brush filament): Stainless steel

Product description

  • PFERD COMBITWIST bevel brush knotted KBG dia. 125x15 mm M14 stainless steel wire dia. 0.50 mm angle grinders

Characteristics

  • Very aggressive brush
  • Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling and removal of spatter
  • In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD uses wire quality 1,4310 (V2A) for all INOX brushes
  • Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life
  • All PFERD brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A
  • The wire quality 1,4310 tends to become ferromagnetic in the case of cold working; i
  • E
  • It can be attracted using magnets
  • ;The reason for this is a change in the microstructure caused by deformation ( e.g. during the wire drawing process)
  • This does not have any impact on the quality and corrosion resistance of the INOX filament
  • The filament is still resistant to corrosion
  • Stainless steel wire (INOX) withstands temperatures up to 450 °C

Advantages:

  • The brush is degreased and does not leave any oil residue on the workpiece.
  • Maximum economic efficiency due to maximum tool life and stock removal rate.
  • High level of comfort thanks to smooth running with no brush recoiling.
  • Suitable for work on corners and edges as the knots are less likely to unravel.
  • Aggressive brushing effect due to the very stiff wire knots.
  • Optimal access to hard-to-reach areas such as inner edges, grooves and keyways.
  • Very good corrosion resistance.

All Features

Brush diameter
125 mm
Connection size (machine)
M14
Connection type (machine)
Internal thread
Wire thickness
0,5 mm
Twisted
Yes
Thickness
15 mm
Max. no-load speed
15000 rpm
Material (brush filament)
Stainless steel
Processing tasks 1
Deburring
Number, threaded ends
28
Workable materials 1
Bronze
Processing tasks
Cleaning
Processing tasks 3
Oxidation removal
Length, trim
19
Processing tasks 9
Corner seam machining
ø outside metric
125
Filling material
Stainless steel wire (INOX)
Processing tasks 5
Removing oxide layers
Max. rpm
15000
Workable materials 9
Stainless steel (INOX)
Workable materials 3
Non-ferrous metal hard
Workable materials 7
Other non-ferrous metals
Workable materials 10
Titanium
ø topping material
0.5
Rpm, opt., to
12500
Workable materials 5
Nickel-based alloys (e.g. Inconel and Hastelloy)
Processing tasks 7
V-seam machining
Workable materials 4
Heat-resistant materials
Workable materials 2
Cobalt-based alloys
Workable materials
Aluminium
Workable materials 6
Nickel- or titanium-based superalloys
Processing tasks 2
Derusting
Width metric
15
Processing tasks 6
Removal of lacquers
Workable materials 11
Titanium alloys
Recording system
Thread
ø thread
M14x2
Processing tasks 8
welding
Processing tasks 4
Removal of run-on colours
Workable materials 8
soft titanium alloys (tensile strength 500 N/mm²)
Rpm, opt., of
6000
  • Brand PFERD
  • EAN 4007220003855
  • Supplier number PFERD 43317016
