Which thread size does this die cut?

It cuts right-hand metric M3 external threads with a pitch of 0.5 mm.

What are the outer dimensions of this die?

The die has an outer diameter of 20 mm and a thickness of 5 mm in accordance with DIN EN 22568.

What is the benefit of the spiral point (gun nose)?

The spiral point pushes chips forward ahead of the cut, ensuring smooth chip evacuation in manual and machine use.

Which die stock is required for this tool?

You need a standard round die stock suitable for dies with a 20 mm outer diameter and a 5 mm thickness.

Can this die be used on machines?

Yes, the HSS construction and spiral point make it suitable for both hand threading and machine operation.

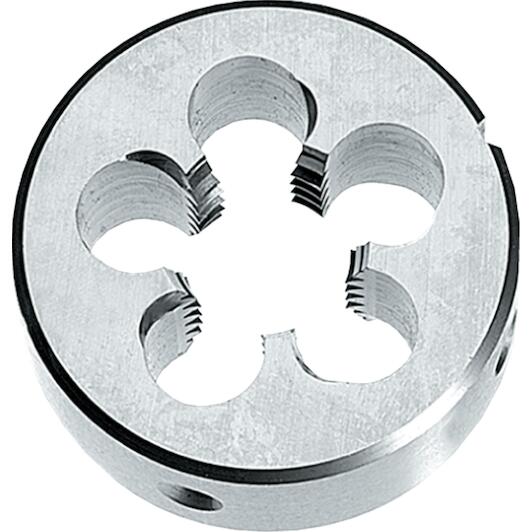

PHANTOM 271200300 HSS round cutting plate DIN EN 22568 metric' peel cut M3

Name: PHANTOM 271200300 HSS round cutting plate DIN EN 22568 metric' peel cut M3
Brand: PHANTOM
SKU: 51300011
Price: 48.82 EUR
Availability: InStock

Supplier number: PHANTOM 271200300 | EAN 8716563332626

48.82 tax incl.

€40.35 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 07/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Precise and clean external threading

Practical benefits

Smooth forward chip evacuation: Thanks to the spiral point geometry, you push chips forward smoothly to avoid clogging and thread damage.
Durable high speed HSS: The hardened high-speed steel construction ensures long tool life and sharp cutting edges during manual or machine operation.
Standard DIN EN 22568 fit: With a 20 mm outer diameter and 5 mm thickness, this die fits securely into standard die stocks.

In a nutshell

The right choise for

With the Phantom 27.120 hss round die, you effortlessly cut accurate right-hand metric M3 external threads with a 0.5 mm pitch on shafts or bolts. The integrated spiral point peel cut pushes chips forward smoothly, preventing clogging and keeping the newly cut thread undamaged. Crafted from wear-resistant HSS, it delivers long tool life and sharp cutting edges for both manual workshop tasks and machine applications. Built to standard din en 22568 dimensions with a 20 mm outer diameter and 5 mm thickness, this die fits standard die stocks to handle your threading, maintenance, and repair jobs with precision.

Product information FAQ

€48.82

In stock - tax incl.

Key features according to our expert

Thread type: Metric
Pitch: 0,5 mm
Cutting direction: Right
Outer diameter: 20 mm
Thickness: 5 mm
Thread size: M3

Product Description:

Phantom HSS Thread Die DIN EN 22568 Metric Coarse gun nosed
DIN EN 22568, 60°, from M3 Gun nosed, for hand and machine use

All Features

Thread type: Metric
Pitch: 0,5 mm
Cutting direction: Right
Outer diameter: 20 mm
Thickness: 5 mm
Thread size: M3

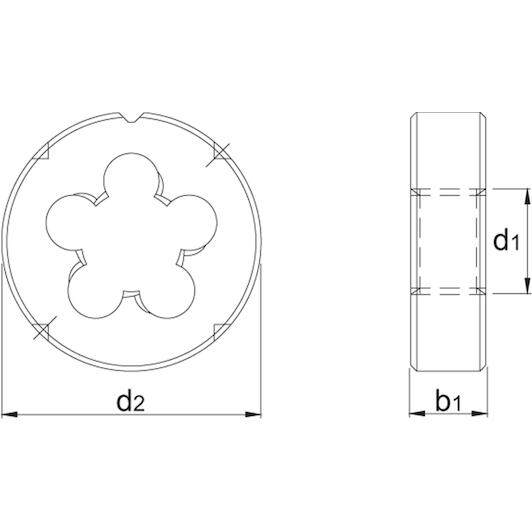

Outside ø (d2): 20 mm
Tool material: HSS
Thread diameter (d1): M3
Tolerance d1 (tol. d1): 6g
Die thickness (b1): 5 mm
Surface: Bright
Norm: DIN EN 22568
Pitch (p): 0,5 mm

Brand PHANTOM
51300011
EAN 8716563332626
Supplier number PHANTOM 271200300

Frequently asked questions about this product

Answered by specialists

Which thread size does this die cut?: It cuts right-hand metric M3 external threads with a pitch of 0.5 mm.
What are the outer dimensions of this die?: The die has an outer diameter of 20 mm and a thickness of 5 mm in accordance with DIN EN 22568.
What is the benefit of the spiral point (gun nose)?: The spiral point pushes chips forward ahead of the cut, ensuring smooth chip evacuation in manual and machine use.
Which die stock is required for this tool?: You need a standard round die stock suitable for dies with a 20 mm outer diameter and a 5 mm thickness.
Can this die be used on machines?: Yes, the HSS construction and spiral point make it suitable for both hand threading and machine operation.
