Which thread type does this die cut?

It cuts right-hand metric fine external threads in size MF10 with a pitch of 1 mm.

Which die stock is required for this die?

You need a die stock designed for round dies with an outer diameter of 30 mm and a thickness of 11 mm.

What is the advantage of the spiral point (peel cut)?

The spiral point pushes chips forward during cutting, preventing chip congestion and delivering a clean thread.

Which standards and materials apply to this die?

This die is made of high-speed steel HSS and complies with the DIN EN 22568 standard.

Can this die be used for left-hand threads?

No, this die has a right-hand cutting direction and is only suitable for standard right-hand threads.

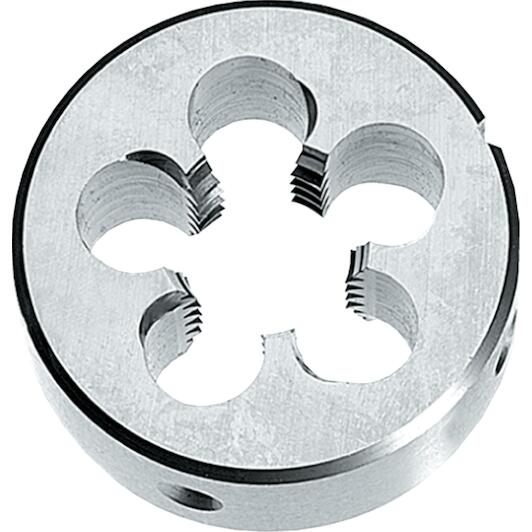

PHANTOM 272201010 HSS round cutting plate DIN EN 22568 metric fine' peel cut MF10x1

Name: PHANTOM 272201010 HSS round cutting plate DIN EN 22568 metric fine' peel cut MF10x1
Brand: PHANTOM
SKU: 51300051
Price: 77.2 EUR
Availability: InStock

Supplier number: PHANTOM 272201010 | EAN 8716563333180

77.20 tax incl.

€63.80 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 07/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Precise fine thread cutting

Practical benefits

Accurate fine metric threads: You create precise right-hand MF10X1 external threads in full compliance with the DIN EN 22568 standard.
Smooth continuous chip clearance: The spiral point pushes chips cleanly forward, giving you smooth cutting action without clogging.
Hardened HSS tool longevity: Constructed from robust HSS, this tool delivers high wear resistance and consistent accuracy during demanding metalworking.

In a nutshell

The right choise for

With the Phantom hss round die din en 22568, you cut right-hand metric fine external threads quickly and with high accuracy. Whether applying new external threads to shafts and bolts or restoring damaged MF10X1 threads, this tool delivers clean and consistent results. Thanks to the spiral point, chips are pushed forward during cutting, preventing congestion and ensuring smooth, uninterrupted operation. Made from durable HSS, this 30x11 mm die delivers strong wear resistance and lasting precision, giving you full control during metalworking and maintenance jobs.

Product information FAQ

€77.20

In stock - tax incl.

Key features according to our expert

Thread type: Metric fine
Pitch: 1 mm
Cutting direction: Right
Outer diameter: 30 mm
Thickness: 11 mm
Thread size: M10

Product Description:

Phantom HSS Thread Die DIN EN 22568 Metric Fine gun nosed
DIN EN 22568, 60°, for hand and machine use

All Features

Thread type: Metric fine
Pitch: 1 mm
Cutting direction: Right
Outer diameter: 30 mm
Thickness: 11 mm
Thread size: M10

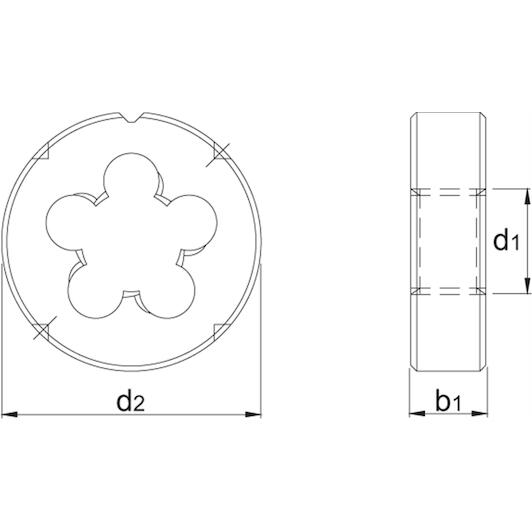

Outside ø (d2): 30 mm
Tool material: HSS
Thread diameter (d1): MF10
Tolerance d1 (tol. d1): 6g
Die thickness (b1): 11 mm
Surface: Bright
Norm: DIN EN 22568
Pitch (p): 1 mm

Brand PHANTOM
51300051
EAN 8716563333180
Supplier number PHANTOM 272201010

Frequently asked questions about this product

Answered by specialists

Which thread type does this die cut?: It cuts right-hand metric fine external threads in size MF10 with a pitch of 1 mm.
Which die stock is required for this die?: You need a die stock designed for round dies with an outer diameter of 30 mm and a thickness of 11 mm.
What is the advantage of the spiral point (peel cut)?: The spiral point pushes chips forward during cutting, preventing chip congestion and delivering a clean thread.
Which standards and materials apply to this die?: This die is made of high-speed steel HSS and complies with the DIN EN 22568 standard.
Can this die be used for left-hand threads?: No, this die has a right-hand cutting direction and is only suitable for standard right-hand threads.
