Which thread type does this die cut?

It cuts right-hand metric fine external threads (MF14) with a pitch of 1.5 mm.

What are the outer dimensions of this die?

The die has an outer diameter of 38 mm and a thickness of 10 mm.

What is the benefit of the gun nose geometry?

The gun nose (spiral point) directs chips forward, ensuring smoother cutting and clean thread formation.

Which die stock holder is required for this model?

You need a standard circular die stock designed for dies sized 38x10 mm.

What material is this threading die made of?

The die is manufactured from HSS steel according to the DIN EN 22568 standard.

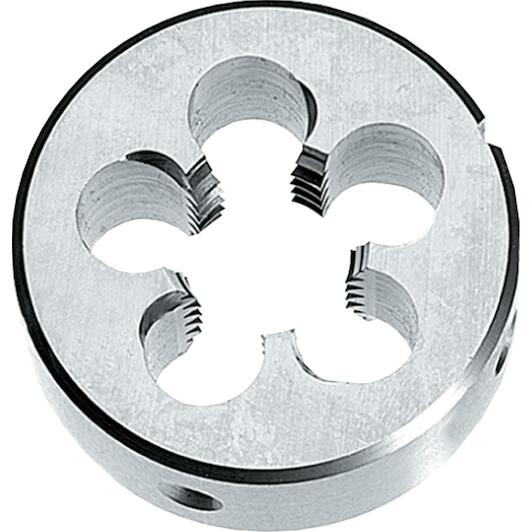

PHANTOM 272201415 HSS round cutting plate DIN EN 22568 metric fine' peel cut MF14x1'5

Name: PHANTOM 272201415 HSS round cutting plate DIN EN 22568 metric fine' peel cut MF14x1'5
Brand: PHANTOM
SKU: 51300064
Price: 92.87 EUR
Availability: InStock

Supplier number: PHANTOM 272201415 | EAN 8716563333333

92.87 tax incl.

€76.75 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 07/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Clean and accurate external threading

Practical benefits

Smooth forward chip flow: Thanks to the spiral point geometry, chips are pushed forward so you prevent clogging during external thread cutting.
Accurate fine thread form: Manufactured from HSS to DIN EN 22568 standards, it ensures precise tolerance on all your MF14X1,5 metric fine threads.
Versatile Phantom cutting tool: Built with a 38 mm outer diameter, this durable die performs reliably in both manual operations and machine setups.

In a nutshell

The right choise for

With the Phantom hss circular die, you cut and restore right-hand metric fine external threads in MF14 with a 1.5 mm pitch with extreme precision. Whether repairing damaged threads on shafts, studs, and bolts or cutting new threads on unalloyed and alloyed steel, this tool guarantees consistent, accurate results. The integrated spiral point guides chips forward, effectively preventing clogging during through-hole threading. Built from hss to din en 22568 standards with dimensions of 38x10 mm, this durable threading die is perfectly suited for both manual operation in a die stock and machine setups.

Product information FAQ

€92.87

In stock - tax incl.

Key features according to our expert

Thread type: Metric fine
Pitch: 1,5 mm
Cutting direction: Right
Outer diameter: 38 mm
Thickness: 10 mm
Thread size: M14

Product Description:

Phantom HSS Thread Die DIN EN 22568 Metric Fine gun nosed
DIN EN 22568, 60°, for hand and machine use

All Features

Thread type: Metric fine
Pitch: 1,5 mm
Cutting direction: Right
Outer diameter: 38 mm
Thickness: 10 mm
Thread size: M14

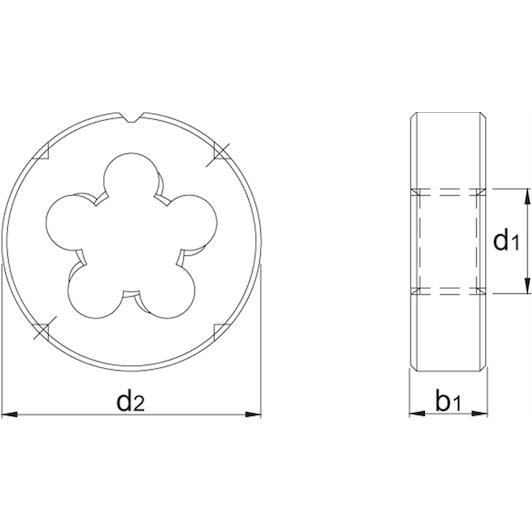

Outside ø (d2): 38 mm
Tool material: HSS
Thread diameter (d1): MF14
Tolerance d1 (tol. d1): 6g
Die thickness (b1): 10 mm
Surface: Bright
Norm: DIN EN 22568
Pitch (p): 1,5 mm

Brand PHANTOM
51300064
EAN 8716563333333
Supplier number PHANTOM 272201415

Frequently asked questions about this product

Answered by specialists

Which thread type does this die cut?: It cuts right-hand metric fine external threads (MF14) with a pitch of 1.5 mm.
What are the outer dimensions of this die?: The die has an outer diameter of 38 mm and a thickness of 10 mm.
What is the benefit of the gun nose geometry?: The gun nose (spiral point) directs chips forward, ensuring smoother cutting and clean thread formation.
Which die stock holder is required for this model?: You need a standard circular die stock designed for dies sized 38x10 mm.
What material is this threading die made of?: The die is manufactured from HSS steel according to the DIN EN 22568 standard.
