Product Description:
- Phantom HSS Thread Die DIN EN 22568 Metric Fine gun nosed
- DIN EN 22568, 60°, for hand and machine use
Supplier number:
PHANTOM 272202215
|
EAN
8716563333500
166.50
tax incl.
€137.60 excl. VAT (incl. all environmental contributions)
Accurate thread cutting with Phantom
Practical benefits- Superior forward chip clearance: The spiral point pushes chips forward during cutting, preventing clogging and keeping your workpiece threads clean.
- Precise metric fine threads: You produce clean and accurate external MF22x1.5 threads complying with DIN EN 22568 manufacturing standards.
- Hand and machine versatility: Built from durable ground HSS, this die performs reliably in both manual holders and automated machine operations.
In a nutshell

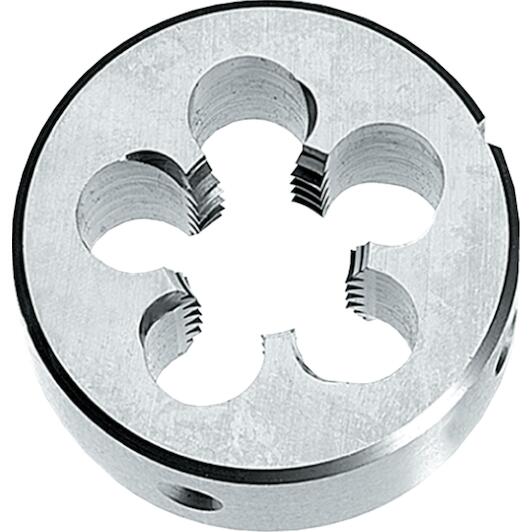

The right choise forCut precise right-hand metric fine external threads of size MF22 with a 1.5 mm pitch using the Phantom 27.220 hss round threading die conforming to din en 22568. Featuring a spiral point gun nose, it continuously drives chips forward during cutting to prevent clogging and protect thread quality. The durable hss tool steel construction delivers dependable performance whether you are working manually with a 55x16 mm die stock or running machining operations in the workshop. It provides metalworkers and maintenance technicians with the accuracy needed to cut new threads on shafts and bolts or quickly restore damaged external threads.
Product information
Key features according to our expert
- Thread type: Metric fine
- Pitch: 1,5 mm
- Cutting direction: Right
- Outer diameter: 55 mm
- Thickness: 16 mm
- Thread size: M22
All Features
- Thread type
- Metric fine
- Pitch
- 1,5 mm
- Cutting direction
- Right
- Outer diameter
- 55 mm
- Thickness
- 16 mm
- Thread size
- M22

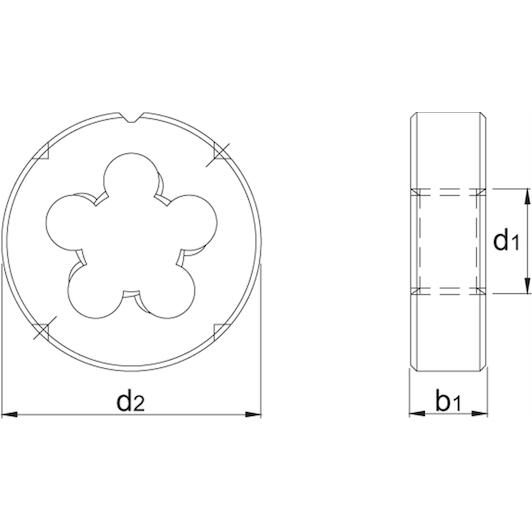

- Outside ø (d2)
- 55 mm
- Tool material
- HSS
- Thread diameter (d1)
- MF22
- Tolerance d1 (tol. d1)
- 6g
- Die thickness (b1)
- 16 mm
- Surface
- Bright
- Norm
- DIN EN 22568
- Pitch (p)
- 1,5 mm
- Brand PHANTOM
- EAN 8716563333500
- Supplier number PHANTOM 272202215
Frequently asked questions about this product
Answered by specialists
- Which thread size does this die cut?
- It cuts a right-hand metric fine external thread of size MF22 with a pitch of 1.5 mm.
- What die stock size is required?
- You need a die stock suitable for round dies with an outer diameter of 55 mm and a thickness of 16 mm.
- What is the benefit of the gun nose design?
- The gun nose (peel cut) directs chips forward, preventing clogging and ensuring a clean thread finish.
- What material is this thread die made of?
- This round thread die is made of high-quality HSS (High Speed Steel) according to DIN EN 22568.
