Product Description:

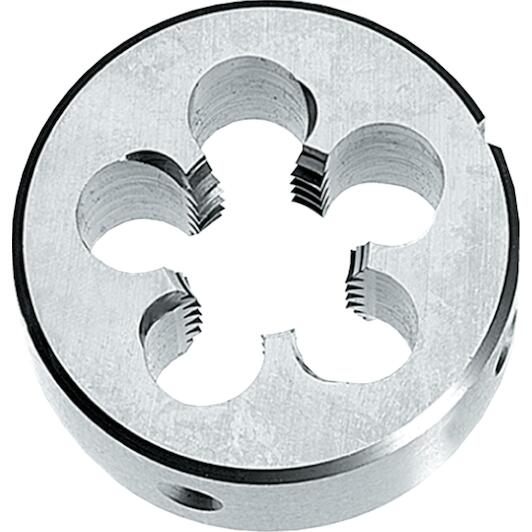

- Phantom HSS Thread Die DIN EN 22568 gun nosed BSW (Whitworth)
- DIN EN 22568, 55°, for hand and machine use
PHANTOM 275601905 HSS round cutting plate DIN EN 22568 peel cut' BSW (Whitworth) 3/4"-10
139.57
tax incl.
€115.35 excl. VAT (incl. all environmental contributions)
Key features according to our expert
- Thread type: BSW
- Pitch: 10 tpi
- Cutting direction: Right
- Outer diameter: 45 mm
- Thickness: 18 mm
- Thread size: 3/4"
Specifications / All features
- Brand: PHANTOM
- EAN: 8716563336327
- Supplier number: PHANTOM 275601905
- Thread type
- BSW
- Pitch
- 10 tpi
- Cutting direction
- Right
- Outer diameter
- 45 mm
- Thickness
- 18 mm
- Thread size
- 3/4"

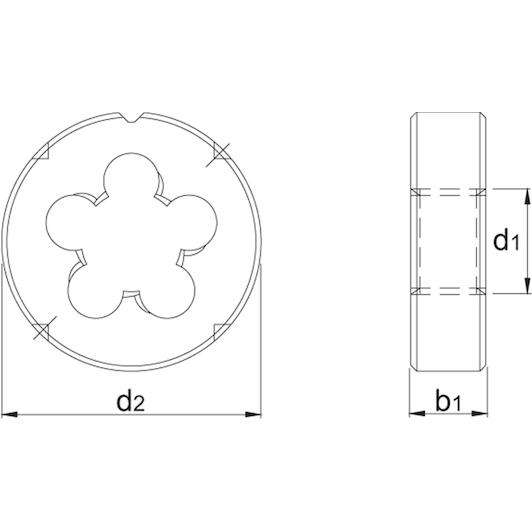

- Outside ø (d2)
- 45 mm
- Tool material
- HSS
- Thread diameter (d1)
- BSW 3/4
- Tolerance d1 (tol. d1)
- Medium
- Die thickness (b1)
- 18 mm
- Surface
- Bright
- Norms
- DIN EN 22568
- Pitch-inch (tpi)
- 10 Threads per inch
