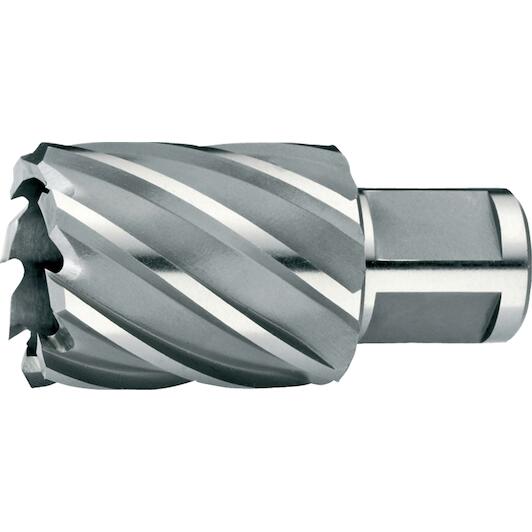

Product Description:
- Phantom HSS Annular Cutter cutting depth 30 mm
- Short series, Weldon type diam. 19 mm and quick change shank
Supplier number:
PHANTOM 621003200
|
EAN
8716563237303
59.96
tax incl.
€49.55 excl. VAT (incl. all environmental contributions)
Fast metal drilling with Phantom
Practical benefits- Superior heat and wear resistance: The HSS-EX steel maintains cutting hardness at high temperatures, allowing you to bore smoothly through heavy-duty metals.
- Secure and stable clamping: The standard WELDON-19 shank prevents slipping in your magnetic drill chuck, providing direct and dependable torque transmission.
- Clean holes without pre-drilling: You cut accurate 32 mm holes up to 30 mm deep quickly and with significantly reduced effort.
In a nutshell
The right choise forWith the Phantom 62100 hss-ex core drill bit, you drill clean 32 mm holes quickly without the need for pilot drilling. By cutting only the periphery of the hole, it significantly reduces drilling time and the power required from your machine. The premium hss-ex steel delivers high heat and wear resistance, keeping the cutting edges sharp during demanding applications in structural steel, cast iron, aluminium, copper, and plastics. With a cutting depth of 30 mm, you produce accurate, burr-free cylindrical holes in heavy plates and sections. The standard WELDON-19 shank ensures a secure, slip-free fit in your magnetic drill press for direct torque transfer.
Product information
Key features according to our expert
- Diameter: 32 mm
- Connection profile: Weldon
- For material: Metal; Cast iron; Aluminium; Copper; Plastic
- Cutting length: 30 mm
All Features
- Diameter
- 32 mm
- Connection profile
- Weldon
- For material
- Metal; Cast iron; Aluminium; Copper; Plastic
- Cutting length
- 30 mm
- Surface
- Bright
- Drill diameter (d1)
- 32 mm
- Shank (d2)
- 19 mm
- Tolerance d1 (tol. d1)
- h11

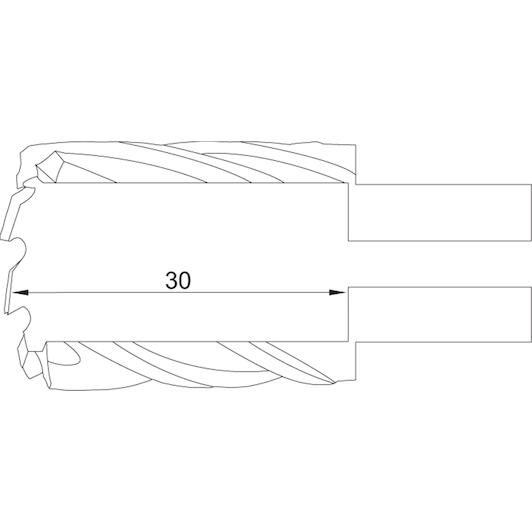

- Cutting depth (ap)
- 30 mm
- Shank type
- Weldon
- Tool material
- HSS-EX
- Brand PHANTOM
- EAN 8716563237303
- Supplier number PHANTOM 621003200
Frequently asked questions about this product
Answered by specialists
- What are the diameter and cutting depth of this core drill bit?
- This Phantom core drill bit features a 32 mm cutting diameter and a maximum cutting depth of 30 mm.
- What type of shank does this cutter have?
- It is equipped with a standard 19.05 mm Weldon-19 shank with two flat clamping surfaces.
- Which materials can this HSS-EX core drill bit cut?
- It is suitable for drilling metal, cast iron, aluminium, copper, and various plastics.
- What is the benefit of the HSS-EX steel quality?
- HSS-EX steel provides higher hot hardness and wear resistance, extending tool life during intensive use.
- Which machines are compatible with this core drill bit?
- It fits directly onto magnetic drilling machines and core drills with a 19 mm Weldon arbor.
