Product description:
- Safety factor 6. Zinc-coated.
Certificate of Conformity
- Not included
Supplier number:
REMA 3011011
|
EAN
8717365013386
23.47
tax incl.
€19.40 excl. VAT (incl. all environmental contributions)

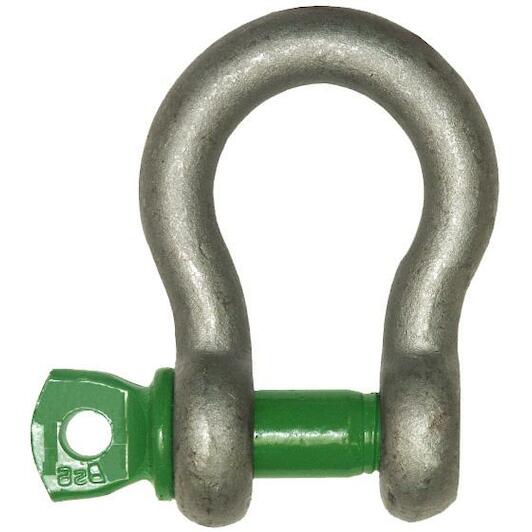

Safe lifting with shackle G-4161
Practical benefits- High capacity of 3250 kg: You lift heavy equipment securely with a rated working load limit of 3250 kg and safety factor 6.
- Fast rigging with screw pin: You attach and release lifting slings smoothly during recurring hoisting jobs using the threaded screw pin.
- Durable galvanized Grade 6 steel: You work reliably in harsh conditions across a wide temperature range from -20 °C to +200 °C.
In a nutshell
The right choise forWith the Rema G-4161 bow shackle, you connect heavy loads securely and reliably during hoisting, rigging, and lashing operations. Weighing just 0.65 kg, it delivers a safe working load limit of 3250 kg (3.25 t) backed by Grade 6 steel and a certified safety factor of 6. The rounded bow design accommodates multi-directional loads smoothly while protecting lifting slings from wear and tear. Thanks to the 19 mm threaded screw pin, you attach and detach chain slings, round slings, and lifting points quickly on the jobsite. The galvanized steel construction performs reliably in demanding environments from -20 °C to +200 °C.
Product information
Key features according to our expert
- Diameter: 19 mm
- Weight: 0,65 kg
- Max. load: 3,25 t
All Features
- Diameter
- 19 mm
- Weight
- 0,65 kg
- Max. load
- 3,25 t

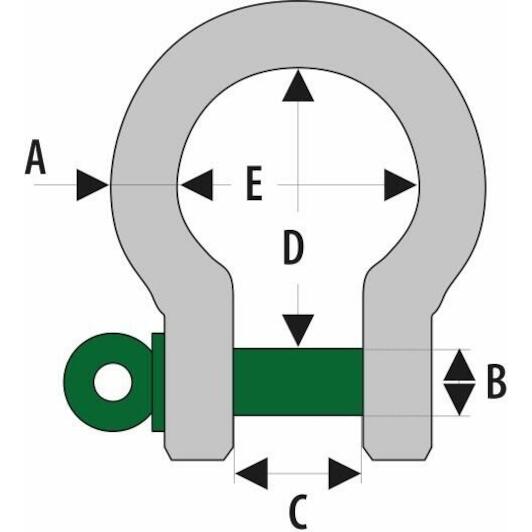

- C
- 27 mm
- B
- 19 mm
- Safe working load
- 3250 kg
- D
- 64 mm
- A
- 16 mm
- E
- 43 mm
- Brand REMA
- EAN 8717365013386
- Supplier number REMA 3011011
Frequently asked questions about this product
Answered by specialists
- What is the maximum working load limit of this bow shackle?
- The working load limit (WLL) of this Rema shackle is 3250 kg (3.25 t) with a safety factor of 6.
- What type of pin does this shackle have?
- This model features a screw collar pin (type G-4161), allowing quick connection and disconnection for recurring lifting tasks.
- What are the size specifications of this shackle?
- This bow shackle has a 5/8" body size, a 19 mm pin diameter, and weighs 0.65 kg.
- What is the operating temperature range for this shackle?
- Made from galvanized high-tensile steel, it is certified for temperatures between -20°C and +200°C in compliance with EN 13889.
