Product description

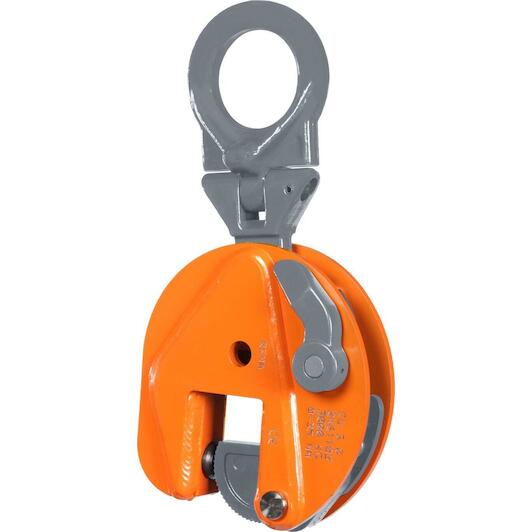

Lifting clamps with a universal lifting eye for the safe lifting and transport of steel plates in a vertical position.
Minimum load: 10 per cent of the safe working load.
- Features
- Fitted with a universal lifting eye, movable in two directions.
- A spring-loaded safety lock exerts an initial force on the plate, preventing it from falling out of the clamp.
- The WLL and jaw opening dimensions are clearly marked on the clamp.
- Safety factor of at least 5 x WLL.
- Each clamp is test-loaded to 2 x WLL.
Application
- For lifting steel plates up to a hardness of 37 RC (345 HB).
- Suitable for lifting, 180° rotation and vertical transport of steel plates.
