SKF

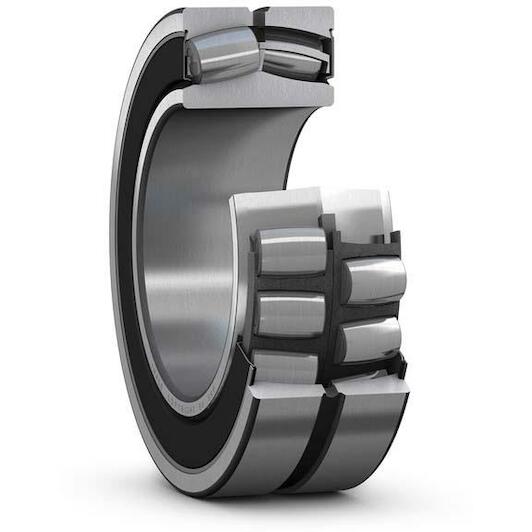

SKF 23040-2CS5K/VT143 spherical roller bearing with tapered bore, seal on both sides and relubrication 200 mm

Recommended Retail Price €5,311.88
2,629.80 tax incl.
€2,173.39 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.

  • Accommodate misalignment
  • High load carrying capacity
  • Sealed for increased reliability, with relubrication features
  • Low friction and long service life
  • Increased wear resistance
Key features according to our expert
  • Inner diameter: 200 mm
  • Width: 82 mm
  • Number of rows: 2
  • Seal (bearing): Double-sided sealed
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Bore type: Tapered
  • Outer diameter: 310 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316574889860
  • Supplier number: SKF 23040-2CS5K/VT143
Inner diameter
200 mm
Width
82 mm
Number of rows
2
Seal (bearing)
Double-sided sealed
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Bore type
Tapered
Outer diameter
310 mm
Lubricant
Grease
Basic static load rating
1530
Relubrication feature
With
Skf performance class
SKF Explorer
Candidate for remanufacturing
Yes
Sealing type
Contact
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class for run-out
P5
Radial internal clearance
CN
Sealing
Seal on both sides
Limiting speed
480
Bore diameter
200
Basic dynamic load rating
1059
Outside diameter
310
Tolerance class for dimensions
Normal
