Product description:

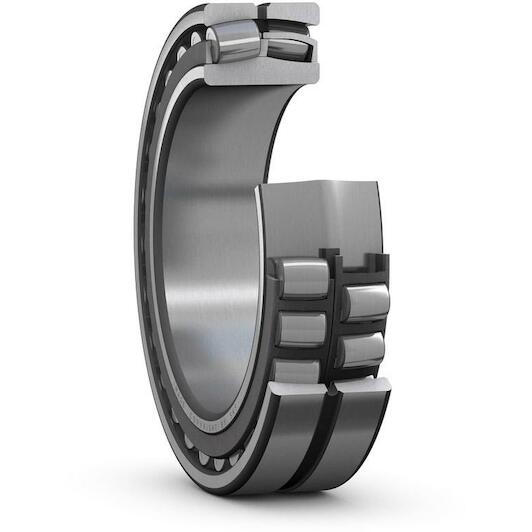

- Spherical roller bearings, also called pendulum roller bearings, have two rows of rollers with a common spherical raceway in the outer ring
- The two raceways of the inner ring are at an angle to the centre line of the shaft
- The bearings can adjust and are therefore insensitive to shaft misalignment relative to the housing and to shaft deflection
- Spherical roller bearings can support not only high radial loads but also axial loads in both directions
Key features according to our expert
-
Inner diameter: 170 mm
-
Width: 110 mm
-
Number of rows: 2
-
Seal (bearing): Without seal
-
Material (bearing seal): Not applicable
-
Radial clearance: C4
-
Material (cage): Brass (sheet)
-
Bore type: Tapered
-
Outer diameter: 310 mm
Specifications / All features
-
Brand:
SKF
-
01092158
-
EAN:
7316577298331
-
Supplier number:
SKF 23234 CCK/C4W33
- Inner diameter
- 170 mm
- Width
- 110 mm
- Number of rows
- 2
- Seal (bearing)
- Without seal
- Material (bearing seal)
- Not applicable
- Radial clearance
- C4
- Material (cage)
- Brass (sheet)
- Bore type
- Tapered
- Outer diameter
- 310 mm
- Relubrication feature
- With
- Tolerance class
- Normal
- Radial internal clearance
- C4
- Basic static load rating
- 1,930 kN
- Candidate for remanufacturing
- Yes
- Reference speed
- 1,400 r/min
- Skf performance class
- SKF Explorer
- Lubricant
- None
- Sealing
- Without
- Cage
- Sheet metal
- Locating feature, bearing outer ring
- Without
- Tolerance class for dimensions
- Normal
- Limiting speed
- 2,000 r/min
- Tolerance class for run-out
- P5
- Bore diameter
- 170 mm
- Basic dynamic load rating
- 1,472 kN
- Outside diameter
- 310 mm
