Product description:

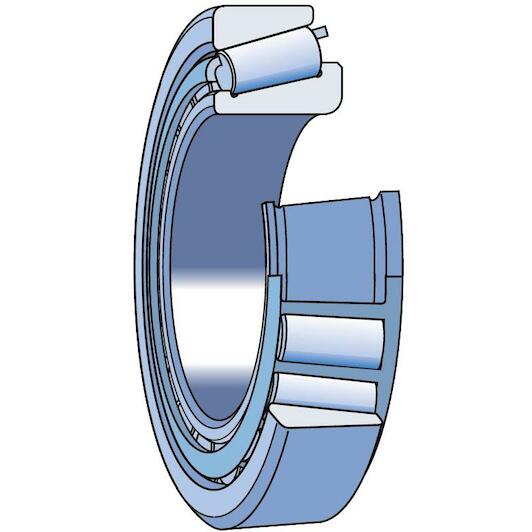

- Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
- Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
- The axial load carrying capacity of bearings is largely paid for by the contact angle
- The larger this angle is, the higher the axial load carrying capacity is
- Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)
Key features according to our expert
-
Inner diameter: 15 mm
-
Width: 14,25 mm
-
Number of rows: 1
-
Outer diameter: 42 mm
Specifications / All features
-
Brand:
SKF
-
01110356
-
EAN:
7316577049391
-
Supplier number:
SKF 30302 J2/VE197
- Inner diameter
- 15 mm
- Width
- 14,25 mm
- Number of rows
- 1
- Outer diameter
- 42 mm
- Width, total
- 14.25 mm
- Cage
- Sheet metal
- Width, outer ring
- 11 mm
- Lubricant
- None
- Reference speed
- 13,000 r/min
- Relubrication feature
- Without
- Matched arrangement
- No
- Basic static load rating
- 20 kN
- Bearing part
- Complete bearing
- Locating feature, bearing outer ring
- None
- Sealing
- Without
- Arrangement of contact angle (double-row bearing)
- Not applicable
- Contact angle
- 10.758055555582 °
- Width, inner ring
- 13 mm
- Limiting speed
- 18,000 r/min
- Bore diameter
- 15 mm
- Basic dynamic load rating
- 22.4 kN
- Coating
- Without
- Outside diameter
- 42 mm
- Bore type
- Cylindrical
