SKF

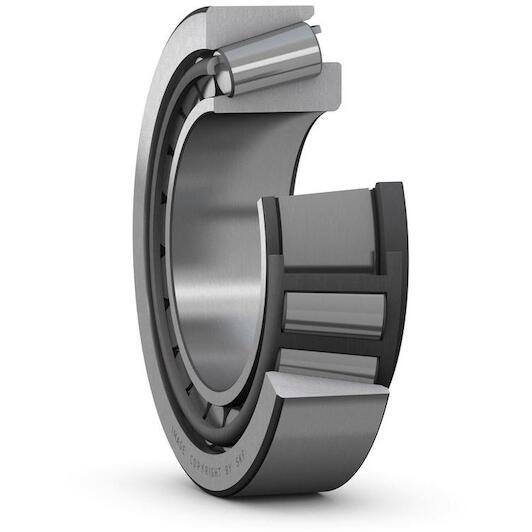

SKF 32007 J2/Q single-row tapered roller bearing 35 x 62 x 18 mm with 16.5° contact angle

This article is not available

Product description:

  • Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
  • Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
  • The axial load carrying capacity of bearings is largely paid for by the contact angle
  • The larger this angle is, the higher the axial load carrying capacity is
  • Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)
Key features according to our expert
  • Inner diameter: 35 mm
  • Outer diameter: 62 mm
  • Width: 18 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577062888
  • Supplier number: SKF 32007 J2/Q
Inner diameter
35 mm
Outer diameter
62 mm
Width
18 mm
Cage
Sheet metal
Width, outer ring
15 mm
Lubricant
None
Reference speed
8,000 r/min
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
49.000000025094 kN
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Arrangement of contact angle (double-row bearing)
Not applicable
Width, inner ring
17 mm
Width, total
18 mm
Contact angle
16.5 °
Limiting speed
11,000 r/min
Bore diameter
35 mm
Basic dynamic load rating
37.400000019154 kN
Coating
Without
Outside diameter
62 mm
Bore type
Cylindrical
