What are the dimensions of this tapered roller bearing?

The tapered roller bearing has an inside diameter of 60 mm, an outside diameter of 95 mm, and a total width of 23 mm.

What types of load can this bearing support?

This single row tapered roller bearing is designed to support combined radial and axial loads in one direction at a 16° contact angle.

What does the CL7C suffix mean on this SKF bearing?

The CL7C designation indicates a high-precision performance design optimized specifically for pinion bearing arrangements.

Can the outer ring be separated from the inner assembly?

Yes, the inner ring with cage and roller assembly can be mounted and dismounted separately from the outer ring.

How many rows of rollers does this SKF bearing have?

This bearing features 1 row of tapered rollers.

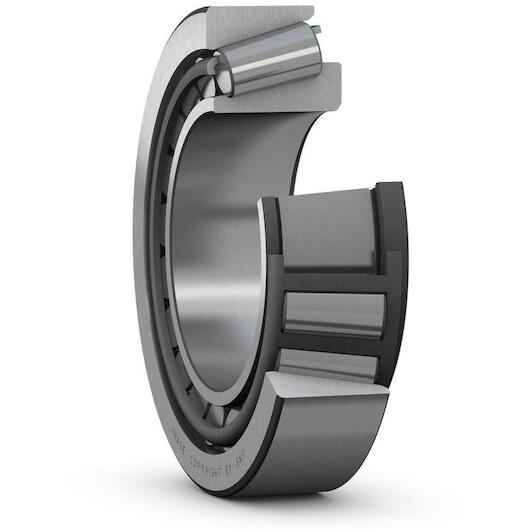

SKF 32012 X/QCL7C single-row tapered roller bearing 60 x 95 x 23 mm with 16° contact angle - 32012 X/CL7C

Supplier number: SKF 32012 X/CL7C | EAN 7316577836809

Recommended Retail Price €112.43

55.60 tax incl.

€45.95 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Smooth rotation with Skf

Practical benefits

High combined load capacity: You effectively handle simultaneous radial and axial forces thanks to the precision 16° contact angle.
Reduced friction and wear: The refined raceway design ensures lower operating temperatures and extends the service life of your lubricant.
Simplified mounting and maintenance: The separable cone and cup allow you to install and inspect the assembly quickly and easily.

In a nutshell

The right choise for

With the Skf 32012 X/QCL7C single row tapered roller bearing, you gain dependable power transmission for heavy-duty mechanical assemblies. Featuring a 16° contact angle, it reliably supports high simultaneous radial and unilateral axial loads. The CL7C high-precision design is specifically optimized for pinion arrangements and industrial gearboxes. Lower running friction keeps operating temperatures down and extends lubricant service life. In addition, the separable inner assembly and outer ring make mounting, inspection, and maintenance fast and straightforward.

Product information FAQ

€55.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Width: 23 mm
Number of rows: 1
Outer diameter: 95 mm

Product description:

Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
The axial load carrying capacity of bearings is largely paid for by the contact angle
The larger this angle is, the higher the axial load carrying capacity is
Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 60 mm
Width: 23 mm
Number of rows: 1
Outer diameter: 95 mm
Arrangement of contact angle (double-row bearing): Not applicable
Cage: Sheet metal
Width, outer ring: 17.5 mm
Lubricant: None
Skf performance class: SKF Explorer
Reference speed: 5,300 r/min
Relubrication feature: Without
Matched arrangement: No
Basic static load rating: 122 kN
Bearing part: Complete bearing
Locating feature, bearing outer ring: None
Sealing: Without
Contact angle: 16.00000000004 °
Width, total: 23 mm
Width, inner ring: 23 mm
Limiting speed: 6,700 r/min
Bore diameter: 60 mm
Basic dynamic load rating: 101 kN
Coating: Without
Outer diameter: 95 mm
Bore type: Cylindrical

Brand SKF
01110201
EAN 7316577836809
Supplier number SKF 32012 X/CL7C

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this tapered roller bearing?: The tapered roller bearing has an inside diameter of 60 mm, an outside diameter of 95 mm, and a total width of 23 mm.
What types of load can this bearing support?: This single row tapered roller bearing is designed to support combined radial and axial loads in one direction at a 16° contact angle.
What does the CL7C suffix mean on this SKF bearing?: The CL7C designation indicates a high-precision performance design optimized specifically for pinion bearing arrangements.
Can the outer ring be separated from the inner assembly?: Yes, the inner ring with cage and roller assembly can be mounted and dismounted separately from the outer ring.
How many rows of rollers does this SKF bearing have?: This bearing features 1 row of tapered rollers.
