SKF

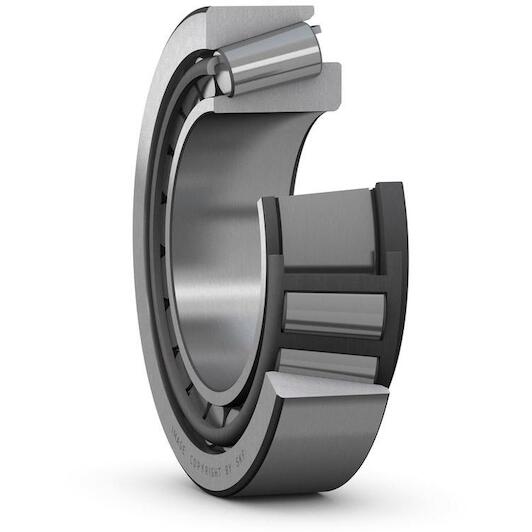

SKF 331126/Q single-row tapered roller bearing 105 x 170 x 38 mm with 16° contact angle

This article is not available

Product description:

  • Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
  • Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
  • The axial load carrying capacity of bearings is largely paid for by the contact angle
  • The larger this angle is, the higher the axial load carrying capacity is
  • Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)
Key features according to our expert
  • Inner diameter: 105 mm
  • Width: 35,75 mm
  • Number of rows: 1
  • Outer diameter: 170 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570836592
  • Supplier number: SKF 331126/Q
Inner diameter
105 mm
Width
35,75 mm
Number of rows
1
Outer diameter
170 mm
Width, total
38 mm
Cage
Sheet metal
Width, outer ring
29 mm
Lubricant
None
Reference speed
2,600 r/min
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
390 kN
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Arrangement of contact angle (double-row bearing)
Not applicable
Contact angle
16.00000000004 °
Width, inner ring
38 mm
Limiting speed
3,800 r/min
Bore diameter
105 mm
Basic dynamic load rating
233 kN
Coating
Without
Outside diameter
170 mm
Bore type
Cylindrical
