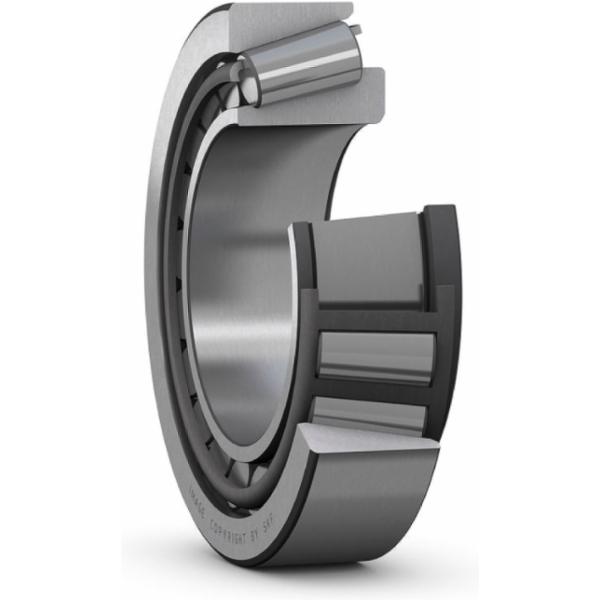

SKF 42687/42620 single-row tapered roller bearing 76.2 x 127 x 30.162 mm with contact angle 15.6°

SKF
Supplier number: SKF 42687/42620 | EAN 7316573301080
This product has been discontinued.

✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Inner diameter: 76,2 mm
  • Width: 30,162 mm
  • Number of rows: 1
  • Outer diameter: 127 mm

Product description:

  • Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
  • Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
  • The axial load carrying capacity of bearings is largely paid for by the contact angle
  • The larger this angle is, the higher the axial load carrying capacity is
  • Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)

All Features

Inner diameter
76,2 mm
Width
30,162 mm
Number of rows
1
Outer diameter
127 mm
Arrangement of contact angle (double-row bearing)
Not applicable
Cage
Sheet metal
Width, outer ring
22.225 mm
Lubricant
None
Skf performance class
SKF Explorer
Reference speed
4,000 r/min
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
204 kN
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Width, inner ring
31 mm
Width, total
31 mm
Contact angle
15.600000000039 °
Limiting speed
5,000 r/min
Bore diameter
76.2 mm
Basic dynamic load rating
171 kN
Coating
Without
Outer diameter
127 mm
Bore type
Cylindrical
  • Brand SKF
  • EAN 7316573301080
  • Supplier number SKF 42687/42620
