SKF

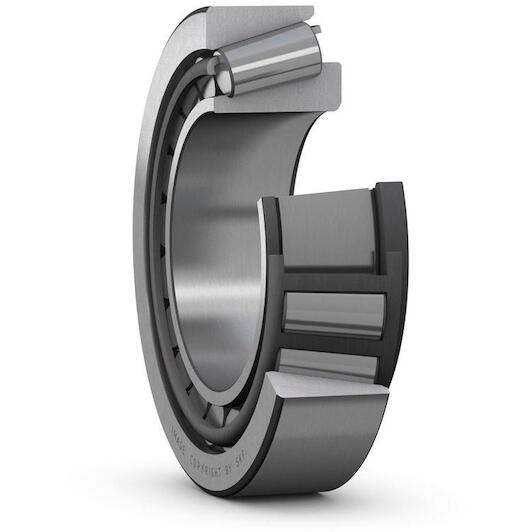

SKF BT1B 328274 A/QCL7C single-row tapered roller bearing 70 x 165 x 57 mm with contact angle 25°

This article is not available

Product description:

  • Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
  • Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
  • The axial load carrying capacity of bearings is largely paid for by the contact angle
  • The larger this angle is, the higher the axial load carrying capacity is
  • Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)
Key features according to our expert
  • Inner diameter: 70 mm
  • Width: 57 mm
  • Number of rows: 1
  • Outer diameter: 165 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570621563
  • Supplier number: SKF BT1B 328274 A/QCL7C
Inner diameter
70 mm
Width
57 mm
Number of rows
1
Outer diameter
165 mm
Width, total
57 mm
Cage
Sheet metal
Width, outer ring
40 mm
Lubricant
None
Reference speed
3,000 r/min
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
425 kN
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Arrangement of contact angle (double-row bearing)
Not applicable
Contact angle
25 °
Width, inner ring
57 mm
Limiting speed
4,500 r/min
Bore diameter
70 mm
Basic dynamic load rating
336 kN
Coating
Without
Outside diameter
165 mm
Bore type
Cylindrical
