SKF FRB 12.5/130 circlip 119 x 130 x 12.5 mm

Supplier number: SKF FRB 12.5/130 | EAN 7316577017505

Recommended Retail Price €30.10

14.80 tax incl.

€12.23 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 30/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable axial fixing with Skf

Practical benefits

Accurate axial bearing location: You securely lock the bearing in the housing to prevent unwanted axial displacement and clearance.
Exact housing seat fit: The 119 x 130 x 12.5 mm dimensions ensure you fill the bearing seat width precisely.
Long lasting mechanical stability: Built from solid steel, you maintain smooth and stable rotation under demanding operating conditions.

In a nutshell

The right choise for

With the Skf frb 12.5/130 locating ring, you locate and secure bearings accurately inside the housing. When the bearing is narrower than the housing seat, this solid steel ring with dimensions of 119 x 130 x 12.5 mm fills the bearing seat width precisely. You eliminate unwanted axial play and shaft drift, keeping rotating shafts running smoothly across conveyor systems, industrial fans, and power transmission drives. Suitable for Skf split pillow block housings such as the snl 215 and snl 515-612 series, it removes the need for custom shims. Easily convert a non-locating arrangement into a fixed, rigid bearing position for long-lasting mechanical stability.

Product information FAQ

€14.80

In stock - tax incl.

Key features according to our expert

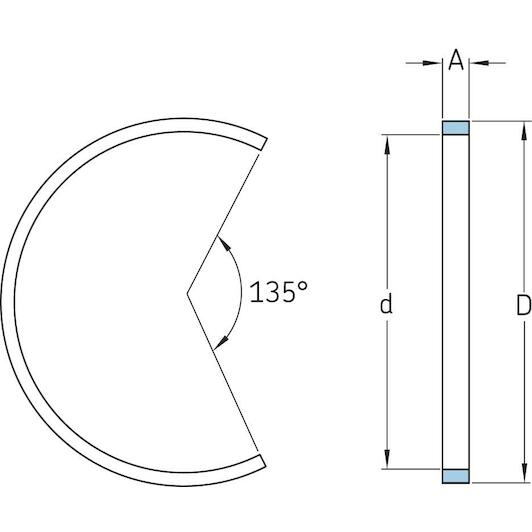

Inner diameter: 119 mm
Outer diameter: 130 mm
Width: 12,5 mm

Product description

A bearing in the locating position must be secured axially in the housing. If the bearing seat in the housing and the bearing width do not match, locating (stabilizing) rings are required. Typically, two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 119 mm
Outer diameter: 130 mm
Width: 12,5 mm
Outside diameter: 130
Inside diameter: 119
Accessory type: Locating ring

Brand SKF
01230073
EAN 7316577017505
Supplier number SKF FRB 12.5/130

Frequently asked questions about this product

Answered by specialists

What is the purpose of the SKF FRB 12.5/130 locating ring?: It is used to axially locate a bearing inside an SKF housing when the bearing width is narrower than the housing seat.
What are the exact dimensions of this ring?: The ring has an outside diameter of 130 mm, an inside diameter of 119 mm, and a width of 12.5 mm.
How many locating rings are typically required per housing?: Typically, two locating rings are needed per housing, with one placed on each side of the bearing.
Which SKF housings are compatible with this locating ring?: This ring is compatible with SKF split pillow block housings such as the SNL 215 and SNL 515-612 series.
