What are the dimensions of this bearing?

The bearing has a 45 mm bore diameter, an 85 mm outer diameter, and a width of 19 mm.

What does the NJ design signify for this roller bearing?

The NJ design has two integral flanges on the outer ring and one on the inner ring, locating the shaft axially in one direction.

What radial internal clearance does the SKF NJ 209 ECP have?

This bearing features standard normal radial internal clearance (CN).

What material is the cage made from?

The cage in the ECP variant is made from glass fibre reinforced polyamide (plastic).

Does this cylindrical roller bearing include seals?

No, this is an open bearing without built-in seals.

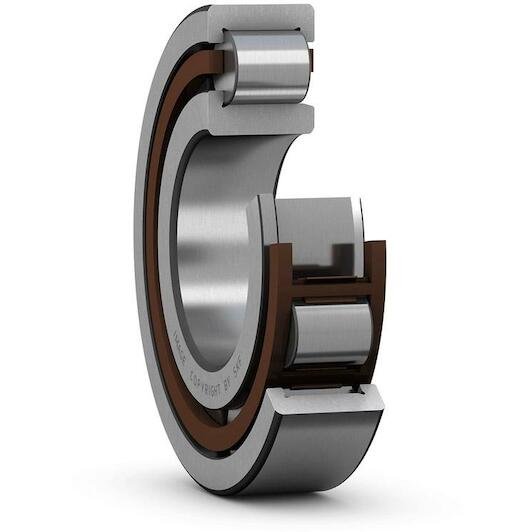

SKF NJ 209 ECP single-row cylindrical roller bearing 45 x 85 x 19 mm

Supplier number: SKF NJ 209 ECP | EAN 7316577022691

Recommended Retail Price €191.76

94.80 tax incl.

€78.35 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered tomorrow 16/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable operation under high radial loads

Practical benefits

High radial load capacity: You handle heavy radial forces and high operating speeds effortlessly with the single-row cylindrical roller design.
Single direction axial location: The NJ 209 ECP design accurately locates the shaft axially in one direction using integrated flanges.
Easy mounting and maintenance: The separable configuration and lightweight polymer cage enable you to install and inspect components quickly.

In a nutshell

The right choise for

With the Skf nj 209 ecp single-row cylindrical roller bearing, you handle heavy radial loads and high rotational speeds effortlessly. Designed with integrated flanges in the nj configuration, it securely locates the shaft axially in one direction, making it an excellent fit for gearboxes, electric motors, and industrial pumps. The lightweight glass-fibre reinforced polyamide cage reduces friction and noise during demanding operation. Thanks to its separable design, you can complete mounting, inspection, and maintenance quickly and smoothly.

Product information FAQ

€94.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 45 mm
Width: 19 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 85 mm

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 45 mm
Width: 19 mm
Number of rows: 1
Radial clearance: CN (Normal)
Material (cage): Plastic
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Bore type: Cylindrical
Outer diameter: 85 mm
Relubrication feature: Without
Tolerance class: Normal
Radial internal clearance: CN
Loose flange: None
Basic static load rating: 64
Cage: Non-metallic
Reference speed: 9000
Skf performance class: SKF Explorer
Lubricant: None
Locating feature, bearing outer ring: None
Number of flanges, inner ring: 1
Bearing part: Complete bearing
Sealing: Without
Number of flanges, outer ring: 2
Limiting speed: 9500
Bore diameter: 45
Basic dynamic load rating: 69.5
Coating: Without
Outer diameter: 85
Axial displacement capability: In one direction

Brand SKF
01070008
EAN 7316577022691
Supplier number SKF NJ 209 ECP

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this bearing?: The bearing has a 45 mm bore diameter, an 85 mm outer diameter, and a width of 19 mm.
What does the NJ design signify for this roller bearing?: The NJ design has two integral flanges on the outer ring and one on the inner ring, locating the shaft axially in one direction.
What radial internal clearance does the SKF NJ 209 ECP have?: This bearing features standard normal radial internal clearance (CN).
What material is the cage made from?: The cage in the ECP variant is made from glass fibre reinforced polyamide (plastic).
Does this cylindrical roller bearing include seals?: No, this is an open bearing without built-in seals.
