SKF

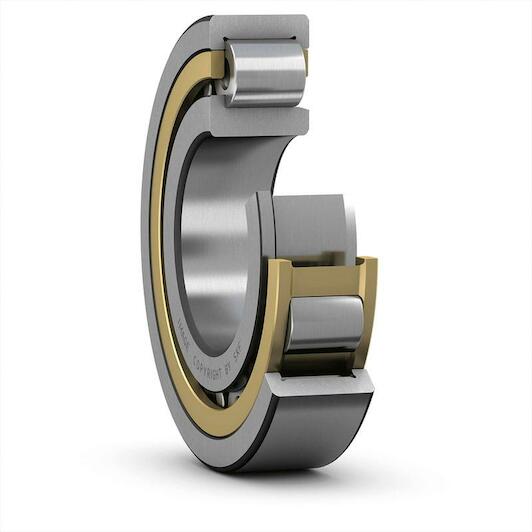

SKF NJ 2305 ECML/C3 single-row cylindrical roller bearing 25 x 62 x 24 mm

This article is not available

Product description:

  • Cylindrical roller bearings have a high radial load carrying capacity and are capable of rotating at high speeds
  • The rollers are guided by fixed track collars on one of the bearing rings
  • The bearing ring with the track collars and roller set can be slid off from the other ring
  • This makes mounting easier (especially if the bearing is to be mounted both on the shaft and on the bore with a fixed fit)
  • A cylindrical roller bearing can withstand (limited) axial displacement
  • Full complement cylindrical roller bearings: contain as many rollers as possible
  • Double-row cylindrical roller bearing: consist of two rows of cylinders
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 24 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Material (cage): Brass (solid)
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 62 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571355375
  • Supplier number: SKF NJ 2305 ECML/C3
Inner diameter
25 mm
Width
24 mm
Number of rows
1
Radial clearance
C3
Material (cage)
Brass (solid)
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
62 mm
Relubrication feature
Without
Tolerance class
Normal
Radial internal clearance
C3
Loose flange
None
Basic static load rating
55 kN
Cage
Machined metal
Reference speed
12,000 r/min
Skf performance class
SKF Explorer
Lubricant
None
Locating feature, bearing outer ring
None
Number of flanges, inner ring
1
Bearing part
Complete bearing
Sealing
Without
Number of flanges, outer ring
2
Limiting speed
22,000 r/min
Bore diameter
25 mm
Basic dynamic load rating
64 kN
Coating
Without
Outside diameter
62 mm
Axial displacement capability
In one direction
