SKF SAA 50 TXE-2LS Rod head with male thread 50 mm, M 45x3

SKF
Supplier number: SKF SAA 50 TXE-2LS | EAN 7316572049181
Recommended Retail Price €1,178.50
583.40 tax incl.
€482.15 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/10/2026

  • Ordered before 20:00 - delivered as of 20/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€583.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 50 mm
  • Connection type: External thread
  • Thread type: Metric
  • Sealing (bearing): Sealed on both sides
  • Maintenance free: Yes
  • Connection size: M45 x 3

Product description

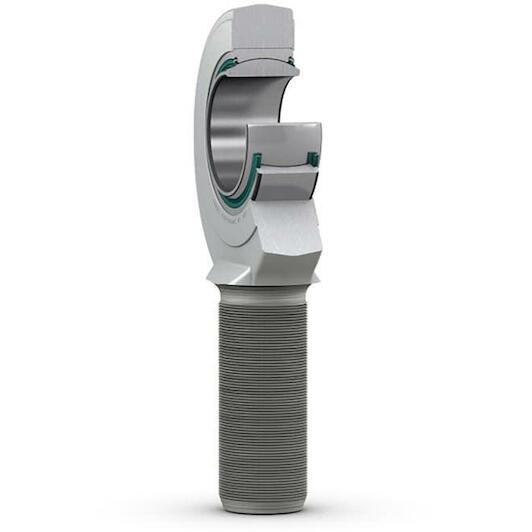

These SKF rod ends contain a spherical plain bearing with a steel/PTFE fabric sliding contact surface combination and a triple-lip, heavy duty contact seal on both sides. The bearing is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread. Some sizes have different fitting dimensions (SA(L)A series).

  • Long service life
  • Maintenance-free
  • Suitable for very heavy, constant direction loads
  • Low coefficient of friction
  • Simple and ready-to-mount

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
50 mm
Connection type
External thread
Thread type
Metric
Sealing (bearing)
Sealed on both sides
Maintenance free
Yes
Connection size
M45 x 3
Bore diameter, bearing inner ring
50
Attachment feature, rod end shank
Right-hand male thread
Material, housing
Steel
Sliding contact surface combination
Steel/PTFE fabric
Housing length, total
244
Maintenance
Maintenance-free
Thread designation
M 45x3
Material, outer ring
Bearing steel
Sealing type
Triple-lip
Outside diameter, housing eye
114
Width, bearing inner ring
35
Basic static load rating
245
Material, inner ring
Bearing steel
Sealing
Seal on both sides
Width, housing eye
31
Basic dynamic load rating
440
Centre height, housing (from end of shank)
185
  • Brand SKF
  • EAN 7316572049181
  • Supplier number SKF SAA 50 TXE-2LS
