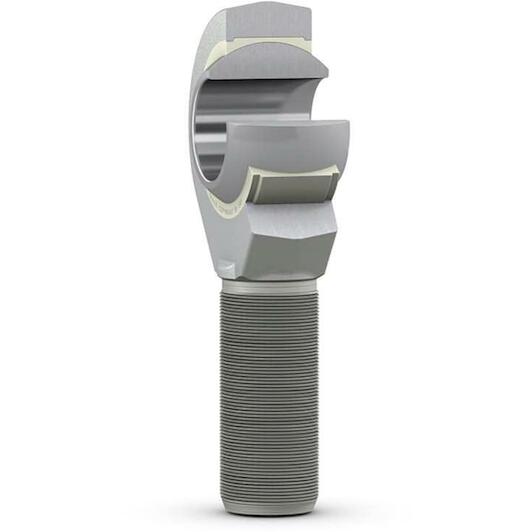

SKF SAKB 16 F Rod head with male thread 16 mm, M 16

SKF
Supplier number: SKF SAKB 16 F | EAN 7316577028815
Recommended Retail Price €257.13
127.20 tax incl.
€105.12 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/10/2026

  • Ordered before 20:00 - delivered as of 20/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€127.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 16 mm
  • Connection type: External thread
  • Thread type: Metric
  • Sealing (bearing): Without seals
  • Maintenance free: Yes
  • Connection size: M16

Product description

These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.

  • Long service life
  • Maintenance-free
  • Relatively insensitive to contaminants
  • Low coefficient of friction
  • Simple and ready-to-mount

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
16 mm
Connection type
External thread
Thread type
Metric
Sealing (bearing)
Without seals
Maintenance free
Yes
Connection size
M16
Basic static load rating
34.5
Attachment feature, rod end shank
Right-hand male thread
Material, housing
Steel
Sliding contact surface combination
Steel/PTFE FRP
Housing length, total
89
Maintenance
Maintenance-free
Thread designation
M 16
Outside diameter, housing eye
43
Bore diameter, bearing inner ring
16
Sealing
Without
Material, inner ring
Bearing steel
Width, bearing inner ring
21
Width, housing eye
15.5
Basic dynamic load rating
21.4
Centre height, housing (from end of shank)
66
  • Brand SKF
  • EAN 7316577028815
  • Supplier number SKF SAKB 16 F
