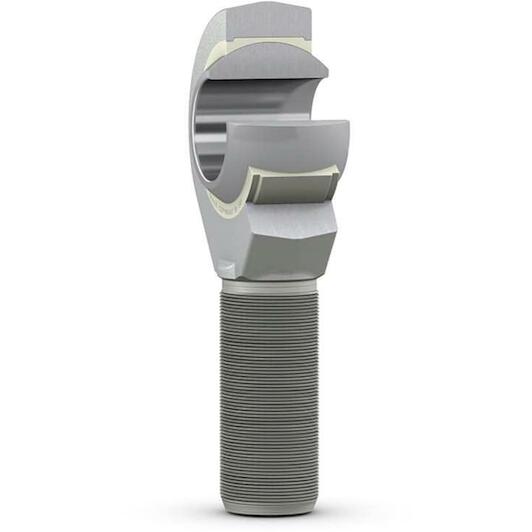

SKF SALKB 20 F Rod head with male thread, left-hand thread 20 mm, M 20x1.5

SKF
Supplier number: SKF SALKB 20 F | EAN 7316577001955
Recommended Retail Price €233.11
115.40 tax incl.
€95.37 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

  • Ordered before 20:00 - delivered as of 22/10/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€115.40
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 20 mm
  • Connection type: External thread
  • Thread type: Metric fine - Left
  • Sealing (bearing): Without seals
  • Maintenance free: Yes
  • Connection size: M20 x 1,5

Product description

These SKF rod ends have an injection moulded sliding layer of PTFE FRP between the housing and the inner ring. This sliding contact surface combination is maintenance-free. The male thread is available with a left- (prefix SAL) or right-hand thread.

  • Long service life
  • Maintenance-free
  • Relatively insensitive to contaminants
  • Low coefficient of friction
  • Simple and ready-to-mount

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
20 mm
Connection type
External thread
Thread type
Metric fine - Left
Sealing (bearing)
Without seals
Maintenance free
Yes
Connection size
M20 x 1,5
Basic static load rating
50
Attachment feature, rod end shank
Left-hand male thread
Material, housing
Steel
Sliding contact surface combination
Steel/PTFE FRP
Housing length, total
106
Maintenance
Maintenance-free
Thread designation
M 20x1.5
Outside diameter, housing eye
51
Bore diameter, bearing inner ring
20
Sealing
Without
Material, inner ring
Bearing steel
Width, bearing inner ring
25
Width, housing eye
18.5
Basic dynamic load rating
31
Centre height, housing (from end of shank)
78
  • Brand SKF
  • EAN 7316577001955
  • Supplier number SKF SALKB 20 F
