SKF

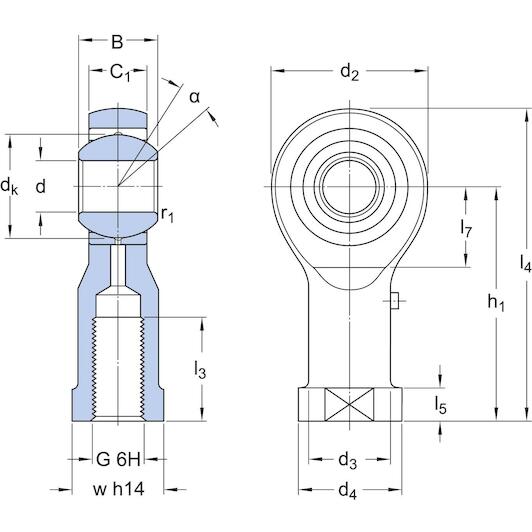

SKF SIKAC 12 M/VZ019 Rod head with female thread 12 mm, M 12x1.25

Recommended Retail Price €112.63
55.60 tax incl.
€45.95 excl. VAT (incl. all environmental contributions)
On stock, immediately available.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

These SKF rod ends contain a spherical plain bearing with a steel/bronze sliding contact surface combination. The bearing requires maintenance, sizes 6 and larger can be relubricated via a grease fitting in the housing and via the shank. The female thread is available with a left- (prefix SIL) or right-hand thread.

  • Suitable where lubricant starvation might occur
  • Simple and ready-to-mount
  • Easy to relubricate (sizes >= 6)
Key features according to our expert
  • Inner diameter: 12 mm
  • Connection type: Inner thread
  • Thread type: Metric
  • Seal (bearing): Without seal
  • Maintenance free: Nein
  • Connection size: M12 x 1,25
Specifications / All features
  • Brand: SKF
  • EAN: 7316570579765
  • Supplier number: SKF SIKAC 12 M/VZ019
Inner diameter
12 mm
Connection type
Inner thread
Thread type
Metric
Seal (bearing)
Without seal
Maintenance free
Nein
Connection size
M12 x 1,25
Basic static load rating
14
Attachment feature, rod end shank
Right-hand female thread
Material, housing
Steel
Sliding contact surface combination
Steel/bronze
Housing length, total
67
Maintenance
Relubrication required
Thread designation
M 12x1.25
Outside diameter, housing eye
33
Bore diameter, bearing inner ring
12
Sealing
Without
Material, inner ring
Bearing steel
Width, bearing inner ring
16
Width, housing eye
12.5
Basic dynamic load rating
12.2
Centre height, housing (from end of shank)
50
