SKF

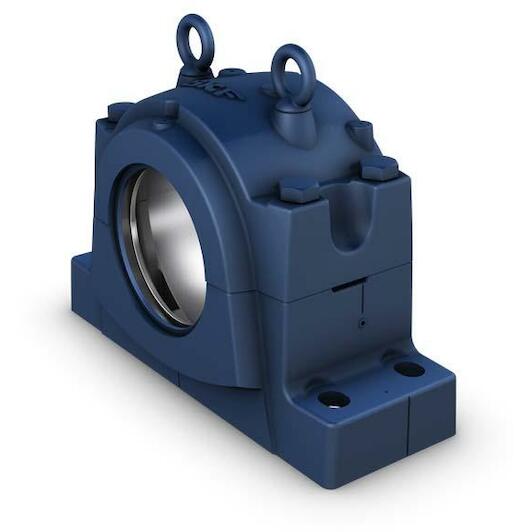

SKF SNL 3156 split bearing housing

Recommended Retail Price €9,414.62
4,660.95 tax incl.
€3,852.02 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

SNL plummer (pillow) block housings in the 30, 31 and 32 series are robust and suitable for tough operating conditions. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made

  • Easy to install
  • Cost-effective bearing arrangement
  • Reduce maintenance
  • Minimize lubricant leakage
Key features according to our expert
  • Material (bearing housing): Cast iron
Specifications / All features
  • Brand: SKF
  • EAN: 7316571680538
  • Supplier number: SKF SNL 3156
Material (bearing housing)
Cast iron
Housing type
Plummer/pillow block
Tightening torque, attachment bolt
2280
Bearing housing seal type
Without
Eye bolt
M24
Material, housing
Cast iron
Tightening torque, cap bolt
400
Grease fill, 40%
4400
Grease fill, 20%
2900
Diameter of bearing seat
460
Centre height (pillow block)
280
Width of bearing seat
166
Housing configuration
Two-piece
Number of bolt holes for fasteners
4
Centre distance between bolt holes
670
Centre distance between bolt holes (axial direction)
160
Attachment bolt diameter
36
Mounting arrangement
Through shaft/Shaft end
Fastening bolt hole type
With holes (unspecified type)
Housing lubrication feature/possibility
Grease
Cap bolt
M30x200
