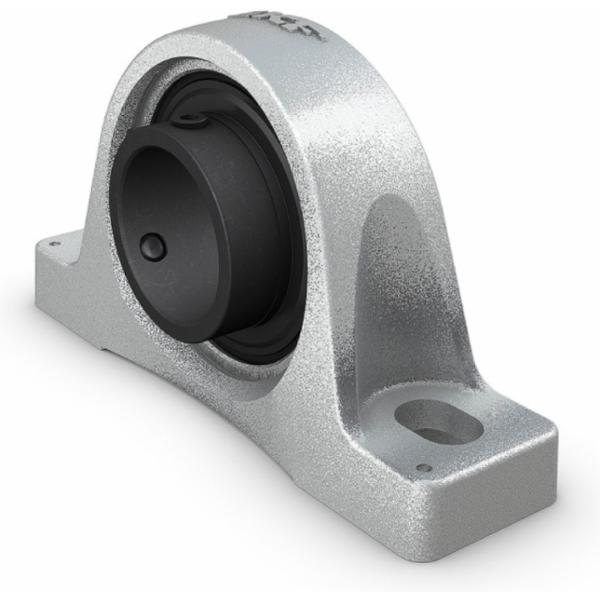

SKF SY 1. TF/VA228 ball bearing unit 25.4 mm

Show more features

Shaft diameter

25,4 mm

Bore type

Cylindrical

Material (bearing housing)

Cast iron

Material (bearing)

Steel

Material, bearing

High temperature steel

Sealing, bearing

Shield and flinger on both sides

Sealing type

Non-contact

Retaining feature, inner ring

Set screws

Centre height (pillow block)

36.5 mm

Lubricant

Solid lubricant

Number of bolt holes for fasteners

2

Basic static load rating

7.8 kN

Material, housing

Cast iron

Bearing width, total

34.1 mm

Maximum operating temperature

350 °C

Rubber seating ring

Without

Grease fitting

Without

Centre distance between bolt holes

102 mm

Sealing, unit

Without

Limiting speed

230 r/min

Fastening bolt hole type

Plain

Relubrication hole

Without

Housing overall width

36 mm

Basic dynamic load rating

14 kN

Coating

Zinc-coated housing and manganese phosphate coated bearing

Housing type

Pillow block
