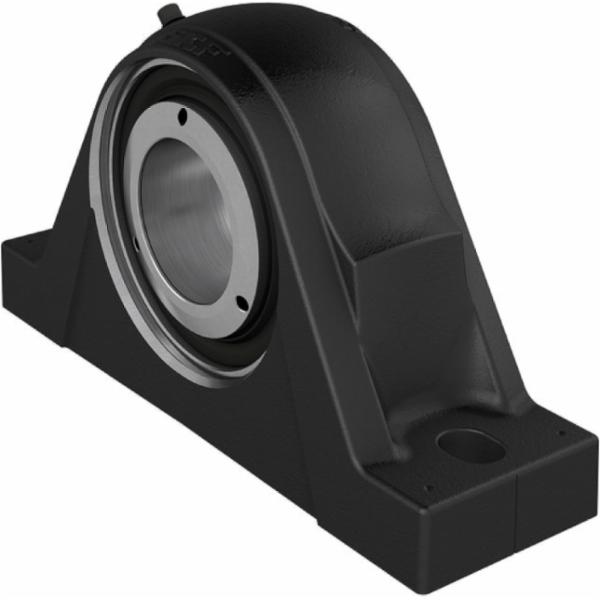

SKF SYNT 65 FTS standing roller bearing unit with two bolts 65 mm

Show more features

Shaft diameter

65 mm

Material (bearing)

Steel

Bore type

Cylindrical

Material (bearing housing)

Cast iron

Grease fitting

With

Housing type

Pillow block

Material, bearing

Bearing steel

Centre height (pillow block)

80 mm

Lubricant

Grease

Number of bolt holes for fasteners

2

Basic static load rating

216 kN

Material, housing

Cast iron

Bearing width, total

72 mm

Retaining feature, inner ring

SKF ConCentra

Centre distance between bolt holes

230 mm

Sealing, unit

Optional end cover

Attachment bolt diameter

16 mm

Bearing insert

Spherical roller bearing

Bearing housing seal type

Labyrinth seal

Limiting speed

3,800 r/min

Relubrication hole

With

Housing overall width

80 mm

Basic dynamic load rating

193 kN

Coating

Without

Bearing position

Locating
