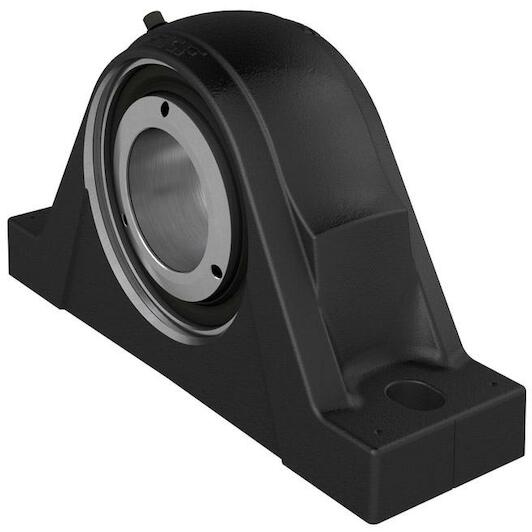

SKF SYNT 75 F standing roller bearing unit with two bolts 75 mm

SKF
Supplier number: SKF SYNT 75 F | EAN 7316574272792
This product has been discontinued.

↓ Documents (1) ✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Shaft diameter: 75 mm
  • Bore type: Cylindrical
  • Material (bearing housing): Cast iron
  • Material (bearing): Steel

Product description

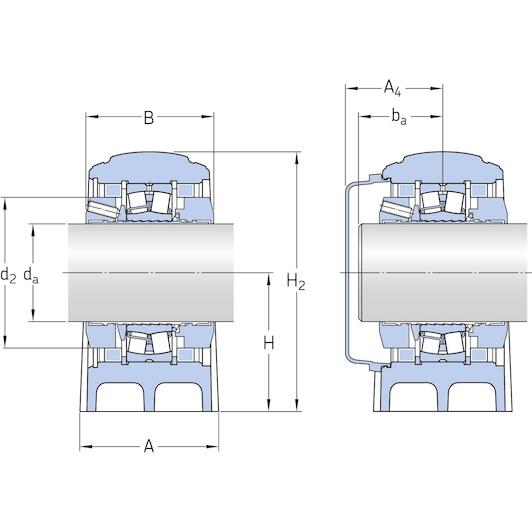

Pillow (plummer) block roller bearing units and take-up roller bearing units consist of a spherical or tapered roller bearing mounted in a non-split housing that can be bolted to a support surface. This variant has a spherical roller bearing, a two-bolt base and SKF ConCentra locking, creating a true concentric tight fit, and setting the correct internal clearance within the bearing. The units are sealed and lubricated and ready to use. This bearing unit covers a wide range of requirements, in metric dimensions.

  • Ready to mount
  • Robust
  • Factory lubricated and sealed
  • Quick mounting
  • Long service life

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter
75 mm
Bore type
Cylindrical
Material (bearing housing)
Cast iron
Material (bearing)
Steel
Material, housing
Cast iron
Grease fitting
With
Centre height (pillow block)
95
Bearing position
Locating
Centre distance between bolt holes
260
Material, bearing
Bearing steel
Lubricant
Grease
Number of bolt holes for fasteners
2
Basic static load rating
240
Bearing width, total
72
Retaining feature, inner ring
SKF ConCentra
Housing type
Pillow block
Bearing insert
Spherical roller bearing
Attachment bolt diameter
20
Sealing, unit
Optional end cover
Limiting speed
2500
Relubrication hole
With
Housing overall width
90
Basic dynamic load rating
212
Coating
Without
Bearing housing seal type
Radial lip seal
  • Brand SKF
  • EAN 7316574272792
  • Supplier number SKF SYNT 75 F
