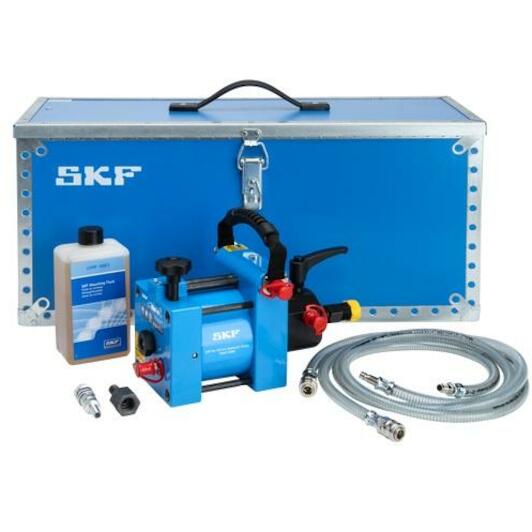

SKF THAP 030E air-operated hydraulic pump 30 MPa in case

SKF
Supplier number: SKF THAP 030E | EAN 7316574959716
6,689.95 tax incl.
€5,528.88 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/10/2026

  • Ordered before 20:00 - delivered as of 20/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
✆ Talk to a specialist


Product information Accessories
€6,689.95
tax incl.

Product information

Key features according to our expert

  • Drive type: Pneumatic
  • Max. pressure: 300 bar
  • Max. flow rate: 200 l/min

Scope of delivery

  • Air driven pump 30 MPa (4 350 psi)
  • 2x Low pressure hoses with couplings(1.5 m/4.9 ft)
  • Air hose coupling(f)
  • Mounting fluid (1 ltr/0.22 gal)
  • Instructions for use
  • Carrying case

Product description

The THAP 030E air-driven hydraulic pump can be used for mounting SKF OK Coupling hydraulic chambers and similar applications for pressures up to 300 bar (30 MPa / 4350 psi). The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy carrying case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismounting fluids are recommended for use with the THAP 030E.

  • Time savings compared to hand operated pumps
  • Portable
  • Continuous supply of oil
  • Internal air pressure limiter helps ensure safe operation
  • Low air consumption
  • Wide operating temperature range
  • Packed in a sturdy carrying case

All Features

Drive type
Pneumatic
Max. pressure
300 bar
Max. flow rate
200 l/min
Pressure gauge
Optional
Air pressure
3-7
Maximum pressure
300
Dimensions (w x l x h)
171 x 350 x 202 mm
Housing material
Aluminium;Alloy tool steel
Oil container
No
Case dimensions (l x h x w)
690 x 245 x 310 mm
Operating temperature range
0-45
Oil viscosity (maximum)
1500
Recommended applications
SKF OK Coupling hydraulic chamber
Air pressure limiter
yes, at 7 bar
Oil outlet thread
G 3/4
Volume per stroke
10
Product weight
11.5
Air consumption
200
Color code
Blue;Metallic grey
Pressure ratio
1:50
  • Brand SKF
  • EAN 7316574959716
  • Supplier number SKF THAP 030E
