SKF THAP 150E air-operated hydraulic pump 150 MPa in case

6,580.95 tax incl.

€5,438.80 excl. VAT (incl. all environmental contributions)

€6,580.95

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information

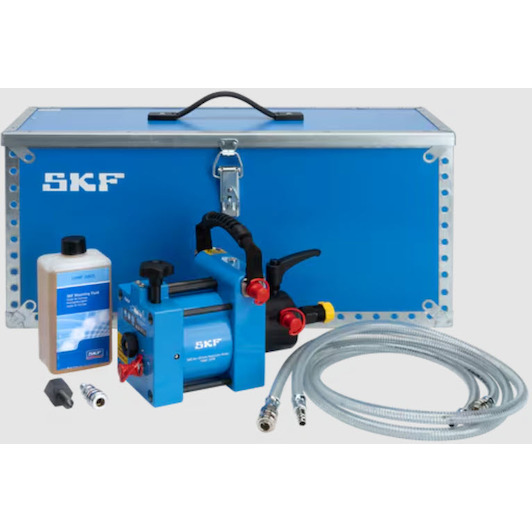

Scope of delivery

Air driven pump 150 MPa (21 750 psi)
2x Low pressure hoses with couplings(1.5 m/4.9 ft)
Air hose coupling(f)
Mounting fluid (1 ltr/0.22 gal)
Instructions for use
Carrying case

Product description

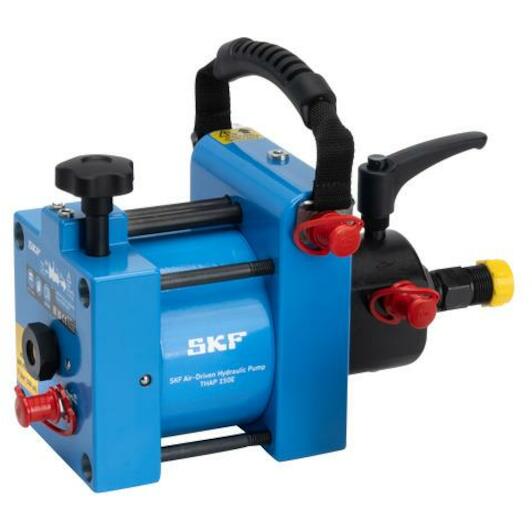

The THAP 150E air-driven hydraulic pump can be used for mounting SKF OK Coupling hydraulic chambers and for mounting and dismounting large rolling element bearings using the oil injection method. It is also suitable for similar applications for pressures up to 1500 bar (150 MPa / 21750 psi). The unit consists of a hydraulic pump driven by an air motor. The item is supplied in a sturdy case including oil suction and return hoses with quick connect couplings. SKF Mounting and Dismounting fluids are recommended for use with the THAP 150E.

Time savings compared to hand operated pumps
Portable
Continuous supply of oil
Internal air pressure limiter helps ensure safe operation
Low air consumption
Wide operating temperature range
Packed in a sturdy carrying case

Key features according to our expert

Drive type: Pneumatic
Max. pressure: 1500 bar
Max. flow rate: 200 l/min

Specifications / All features

Brand: SKF
03164166
EAN: 7316574959730
Supplier number: SKF THAP 150E

Drive type: Pneumatic
Max. pressure: 1500 bar
Max. flow rate: 200 l/min
Pressure gauge: Optional
Air pressure: 3-7
Maximum pressure: 1500
Dimensions (w x l x h): 171 x 350 x 202 mm
Housing material: Aluminium;Alloy tool steel
Oil container: No
Case dimensions (l x h x w): 690 x 245 x 310 mm
Operating temperature range: 0 to 45 ° C
Oil viscosity (maximum): 1500
Recommended applications: Bolt tensioners;Mounting of propellers;Oil injection for large bearing seatings
Air pressure limiter: yes, at 7 bar
Oil outlet thread: G 3/4
Volume per stroke: 1.92
Product weight: 11.5
Air consumption: 200
Color code: Blue;Metallic grey
Pressure ratio: 1:250
