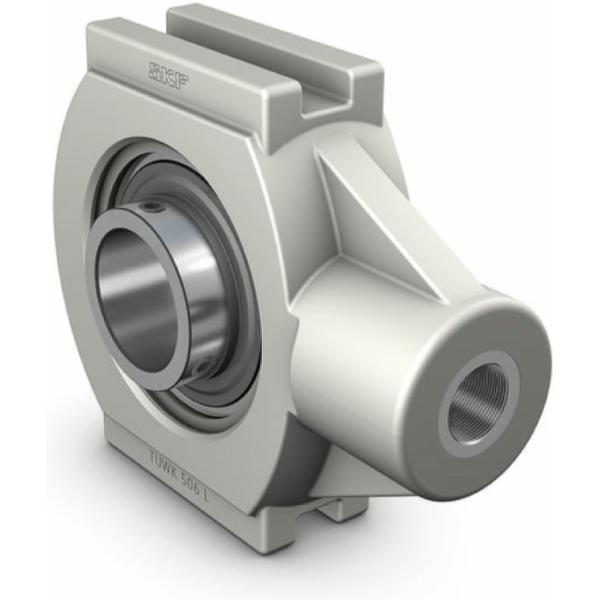

SKF TUWK 30 LTHR ball bearing unit 30 mm

Show more features

Shaft diameter

30 mm

Material (bearing)

Stainless steel

Bore type

Cylindrical

Material (bearing housing)

Composite

Grease fitting

Without

Material, bearing

Stainless steel

Sealing, bearing

Seal and flinger on both sides

Sealing type

Contact, multiple

Rubber seating ring

Without

Lubricant

Grease

Basic static load rating

11.2 kN

Material, housing

Composite for the SKF Food Line

Bearing width, total

38.1 mm

Retaining feature, inner ring

Set screws

Sealing, unit

Optional end cover

Note

Limiting speed with shaft tolerance h6

Limiting speed

3,800 r/min

Relubrication hole

Without

Housing overall width

34 mm

Basic dynamic load rating

16.3 kN

Coating

Without

Housing type

Take-up
