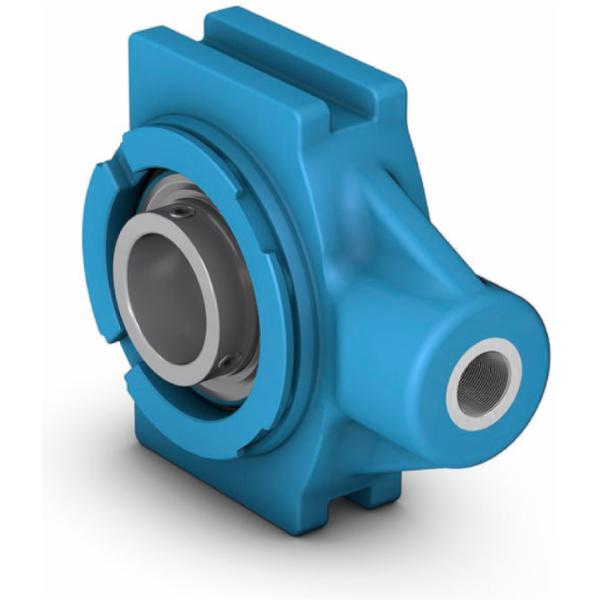

SKF WSTUC 108-TPSS ball bearing unit 38.1 mm

Show more features

Shaft diameter

38,1 mm

Material (bearing)

Stainless steel

Bore type

Cylindrical

Product line

Blue Line

Material (bearing housing)

Composite

Grease fitting

Without

Material, bearing

Stainless steel

Sealing, bearing

Seal and flinger on both sides

Sealing type

Contact, gutter

Rubber seating ring

Without

Lubricant

Grease

Basic static load rating

19 kN

Material, housing

Composite for the SKF Food Line

Bearing width, total

49.2 mm

Retaining feature, inner ring

Set screws

Limiting speed

2,800 r/min

Note

Limiting speed with shaft tolerance h6

Sealing, unit

Optional end cover

Relubrication hole

Without

Housing overall width

41 mm

Basic dynamic load rating

24.7 kN

Coating

Without

Housing type

Take-up
