SKF

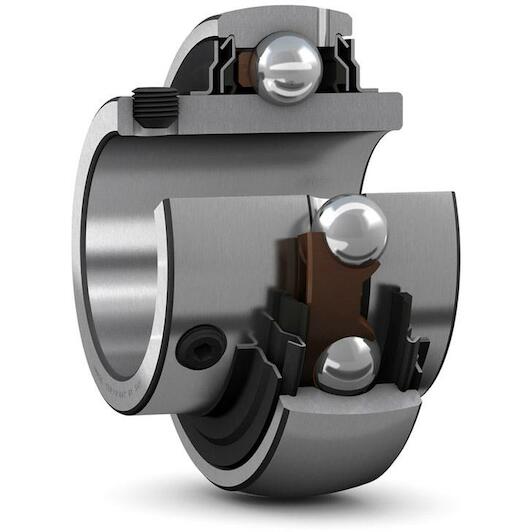

SKF YAR 206-2F Y insert bearing cylindrical with set screw for metric shaft, 30 x 62 mm

Recommended Retail Price €69.83
34.40 tax incl.
€28.43 excl. VAT (incl. all environmental contributions)
On stock, immediately available.
each

  • Ordered before 20:00 - delivered as of 16/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

  • Designed for a constant and alternating rotation
  • Quick and easy to mount onto the shaft
  • Reduce noise and vibration levels
Key features according to our expert
  • Inner diameter: 30 mm
  • Width: 38,1 mm
  • Material (bearing): Steel
  • Material (cage): Plastic
  • High temperature: No
  • Bore type: Cylindrical
  • Inner ring extension: On both sides
  • Outer diameter: 62 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577027542
  • Supplier number: SKF YAR 206-2F
Inner diameter
30 mm
Width
38,1 mm
Material (bearing)
Steel
Material (cage)
Plastic
High temperature
No
Bore type
Cylindrical
Inner ring extension
On both sides
Outer diameter
62 mm
Width, outer ring
18
Basic static load rating
11.2
Relubrication feature
With
Lubricant
Grease
Rubber seating ring
Without
Sealing type
Contact, standard
Cage
Non-metallic
Material, bearing
Bearing steel
Sealing
Seal and flinger on both sides
Rolling elements
Balls
Application
For material handling applications
Retaining feature, inner ring
Set screws
Limiting speed
6300
Outer ring type
Spherical
Width, total
38.1
Width, inner ring
38.1
Shaft diameter
30
Bore diameter
30
Basic dynamic load rating
19.5
Coating
Without
Outside diameter
62
Note
Limiting speed with shaft tolerance h6
