What applications is this Spit pin designed for?

It is designed for fastening drainage sheets and waterproofing membranes to concrete.

Which tools are compatible with the Spit CR 9/30 P?

This single-shot pin is compatible with powder-actuated tools such as the Spit P370 and P200.

What is the purpose of the plastic washer?

The 34 mm plastic washer provides effective clamping and prevents thin membranes from tearing.

What are the dimensions of this pin?

The pin has a length of 30 mm, a head diameter of 9 mm, and a 34 mm plastic washer.

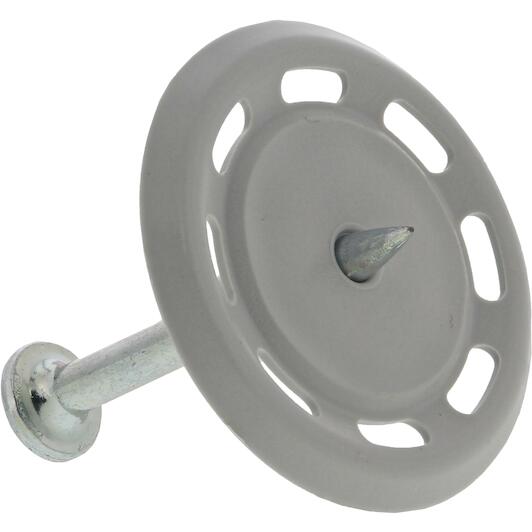

SPIT 038090 single-lock nail CR 9/30 P with 34 mm plastic washer for concrete

Name: SPIT 038090 single-lock nail CR 9/30 P with 34 mm plastic washer for concrete
Brand: SPIT
SKU: 02703717
Price: 0.75 EUR
Availability: PreOrder

Supplier number: SPIT 038090 | EAN 3439510380901

0.75 tax incl.

€0.62 excl. VAT (incl. all environmental contributions)

On order: delivered from 09/10/2026

The minimum purchase order quantity for the product is 200.

Ordered before 20:00 - delivered as of 09/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

✆ Talk to a specialist

Secure drainage membrane fastening by Spit

Practical benefits

Large integrated plastic washer: The 34 mm plastic washer provides broad surface contact so you can clamp fragile membranes without tearing.
Reliable hold in concrete: The 30 mm steel nail drives securely into tough concrete substrates to deliver high holding power.
Fast single-shot direct fixing: Engineered for powder-actuated tools, you achieve rapid and clean single-shot fastenings on demanding job sites.

In a nutshell

The right choise for

With the Spit cr 9/30 p single-shot pin, you fasten drainage sheets and waterproofing membranes quickly and securely to concrete. The wide 34 MM plastic washer delivers broad surface contact, preventing thin foils and dimpled sheets from tearing during installation. Featuring a 30 MM steel nail with a 9 MM head diameter, it drives firmly into hard concrete for strong holding power. Compatible with powder-actuated tools such as the Spit P370 and P200, this pin eliminates the need for pre-drilling and helps you finish foundation and basement waterproofing jobs efficiently.

Product information FAQ

€0.75

tax incl.

Key features according to our expert

Diameter: 9 mm
Length: 30 mm

Product description

Single plate nail with 34 mm plastic washer for concrete
Good clamping of thin and soft membranes
Applications
- Fastening of (traffic) signs
- Sun protection
- Scaffolding
- Switch panels
- Radiators
- Brackets
- Air conditioning
- Handrail
- Fences
- Decoration
- Dismountable walls

All Features

Diameter: 9 mm
Length: 30 mm
Coated: Galvanised
Wire type: Straight
Point type: Intersection
Surface treatment: Electro galvanised 5-15µm
Type of head: Full flat head
Nominal diameter: 3.65 mm
Head diameter: 8.8 mm

Brand SPIT
02703717
EAN 3439510380901
Supplier number SPIT 038090

Frequently asked questions about this product

Answered by specialists

What applications is this Spit pin designed for?: It is designed for fastening drainage sheets and waterproofing membranes to concrete.
Which tools are compatible with the Spit CR 9/30 P?: This single-shot pin is compatible with powder-actuated tools such as the Spit P370 and P200.
What is the purpose of the plastic washer?: The 34 mm plastic washer provides effective clamping and prevents thin membranes from tearing.
What are the dimensions of this pin?: The pin has a length of 30 mm, a head diameter of 9 mm, and a 34 mm plastic washer.
